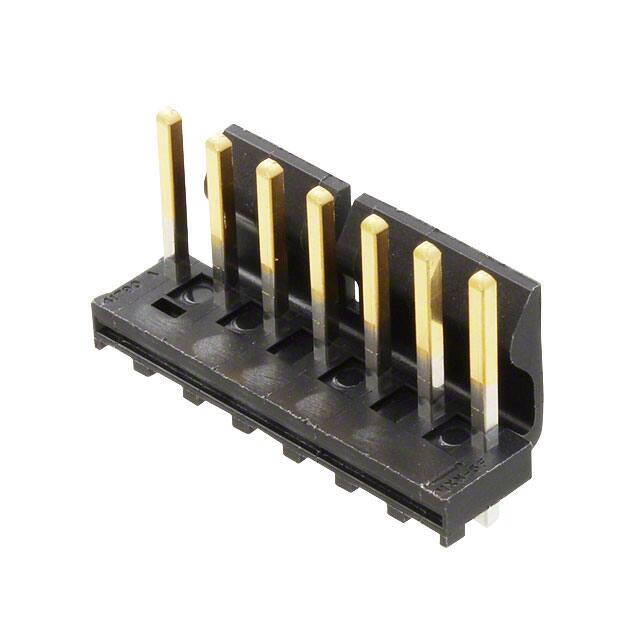

1718131007

Specifications

Sıra Sayısı

1

Seri

KK 171813

Contact Finish Thickness Post

100.0μin 2.54μm

Insulation Color

Black

Withdrawl Forcemin

.9452 N

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.156 3.96mm

Overall Contact Length

0.671 17.05mm

Reference Standard

UL, CSA

Rated Current Signal

7A

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Contact Finish Post

Tin

Durability

25 Cycles

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Fastening Type

Friction Lock

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

7

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE

Contact Type

Male Pin

Contact Finish Mating

Gold

Body Depth

0.446 inch

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Parça Durumu

Active

Montaj Tipi

Through Hole

Insulation Height

0.446 11.33mm

Length Termination

0.092 inch

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Body Breadth

0.394 inch

Insertion Forcemax

3.892 N

Connector Type

Header

Reliability

COMMERCIAL
