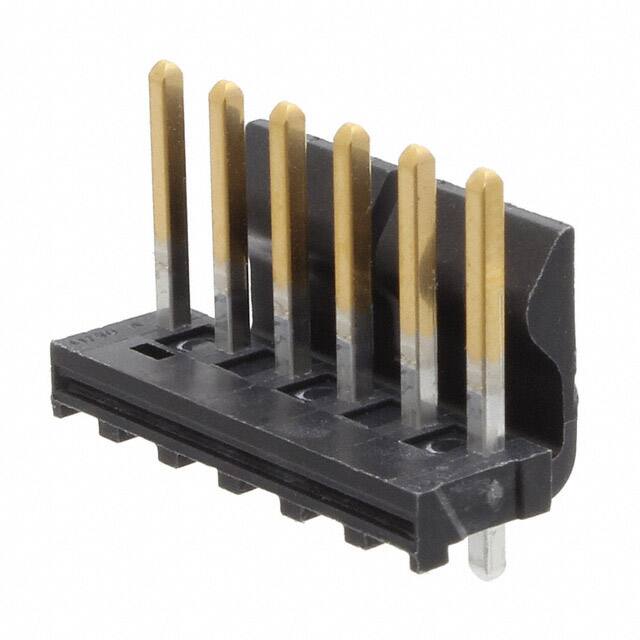

1718131006

Specifications

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Overall Contact Length

0.671 17.05mm

Rated Current Signal

7A

Reference Standard

UL, CSA

Pitch Mating

0.156 3.96mm

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.9452 N

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171813

Sıra Sayısı

1

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE

Pozisyon Sayısı

6

Contact Materials

Brass

Number Of Positions Loaded

All

Fastening Type

Friction Lock

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Number Of Pcb Rows

1

Durability

25 Cycles

Contact Finish Post

Tin

Length Termination

0.092 inch

Insulation Height

0.446 11.33mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Montaj Tipi

Through Hole

Parça Durumu

Active

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e3

Contact Type

Male Pin

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.093 2.35mm

Ambalaj

Bulk

Operating Temperature Min

-40°C

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Reliability

COMMERCIAL
