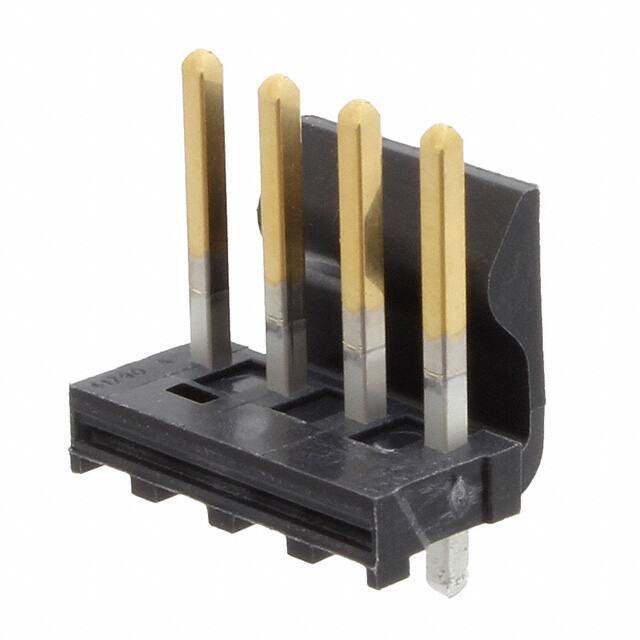

1718131004

Specifications

JESD-609 Kodu

e3

Contact Type

Male Pin

Contact Finish Mating

Gold

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Insulation Height

0.446 11.33mm

Length Termination

0.092 inch

Contact Finish Thickness Mating

15.0μin 0.38μm

Montaj Tipi

Through Hole

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.448 11.38mm

Connector Type

Header

Insertion Forcemax

3.892 N

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Length Post

0.093 2.35mm

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171813

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.156 3.96mm

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Overall Contact Length

0.671 17.05mm

Rated Current Signal

7A

Reference Standard

UL, CSA

Durability

25 Cycles

ECCN Kodu

EAR99

Contact Finish Post

Tin

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Number Of Pcb Rows

1

Fastening Type

Friction Lock

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE
