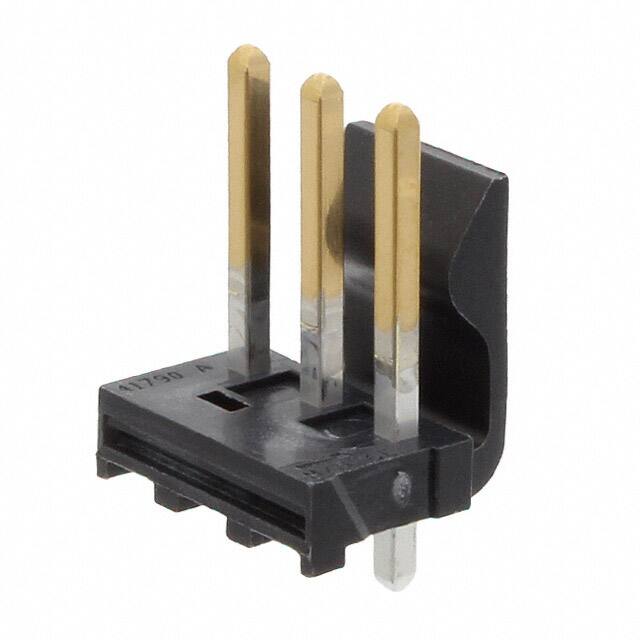

1718131003

Specifications

Body Depth

0.446 inch

JESD-609 Kodu

e3

Contact Finish Mating

Gold

Contact Type

Male Pin

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.446 11.33mm

Length Termination

0.092 inch

Montaj Tipi

Through Hole

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Body Length Or Diameter

0.462 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Contact Length Post

0.093 2.35mm

Ambalaj

Bulk

Insulation Color

Black

Seri

KK 171813

Sıra Sayısı

1

Contact Finish Thickness Post

100.0μin 2.54μm

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.9452 N

Pitch Mating

0.156 3.96mm

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Rated Current Signal

7A

Reference Standard

UL, CSA

Overall Contact Length

0.671 17.05mm

Durability

25 Cycles

Contact Finish Post

Tin

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Number Of Pcb Rows

1

Fastening Type

Friction Lock
