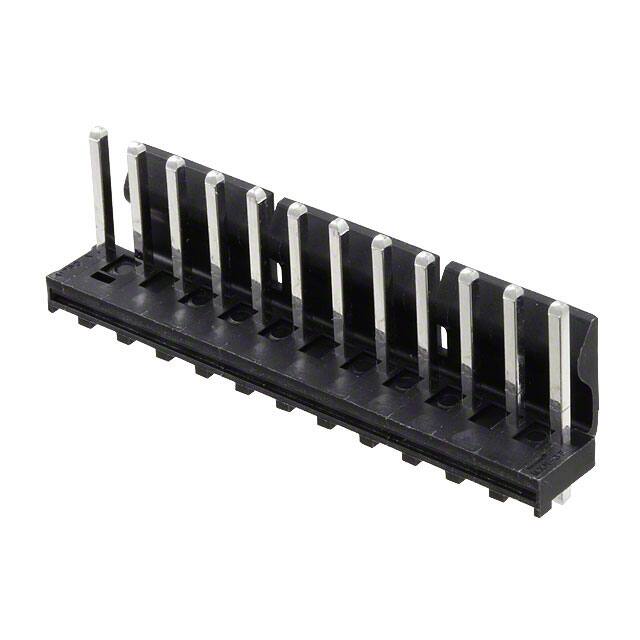

1718130012

Specifications

Fastening Type

Friction Lock

Fabrika Tedarik Süresi

14 Weeks

Number Of Conductors

ONE

Pozisyon Sayısı

12

Contact Materials

Brass

Number Of Positions Loaded

All

Durability

25 Cycles

ECCN Kodu

EAR99

Terminal

Solder

HTS Kodu

8536.69.40.40

Shrouding

Shrouded - 1 Wall

Number Of Pcb Rows

1

Pitch Mating

0.156 3.96mm

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Rated Current Signal

7A

Reference Standard

UL, CSA

Overall Contact Length

0.671 17.05mm

Insulation Color

Black

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171813

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.9452 N

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Ambalaj

Bulk

Contact Length Post

0.093 2.35mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.448 11.38mm

Connector Type

Header

Insertion Forcemax

3.892 N

Body Breadth

0.394 inch

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Length Termination

0.092 inch

Insulation Height

0.446 11.33mm
