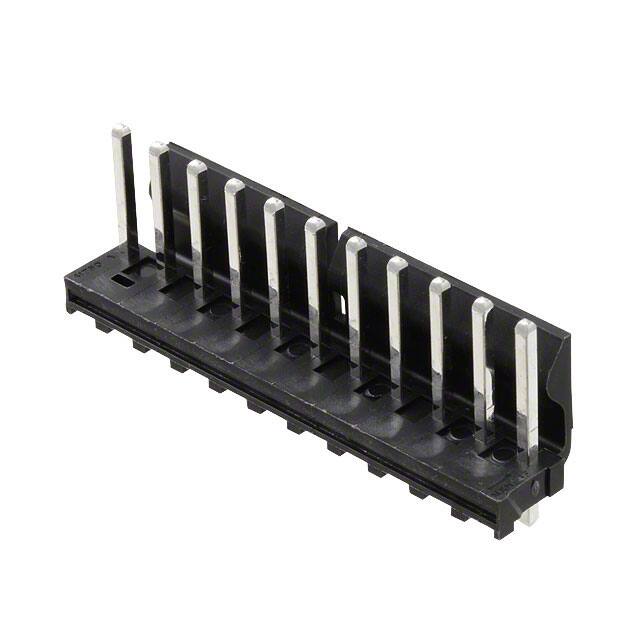

1718130011

Specifications

Durability

25 Cycles

Terminal

Solder

Fastening Type

Friction Lock

Contact Gender

Male

Fabrika Tedarik Süresi

14 Weeks

Number Of Positions Loaded

All

Contact Materials

Brass

Insulation Color

Black

Seri

KK 171813

Withdrawl Forcemin

.9452 N

Maks. Çalışma Sıcaklığı

105°C

Mating Post Length

11.38mm

Akım Değeri

7A

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Nominal Gerilim

250V

Reference Standard

UL, CSA

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Style

Board to Board or Cable

Ambalaj

Bulk

Montaj

Through Hole

Orientation

Vertical

Contact Finish Mating

Tin

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.446 11.33mm

Shrouding

Shrouded - 1 Wall

Flammability Rating

UL94 V-2

Number Of Pcb Rows

1

Halogen Free

Low Halogen

Number Of Conductors

ONE

Pozisyon Sayısı

11

Contact Finish Thickness Post

60.0μin 1.52μm

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Min. Çalışma Sıcaklığı

-40°C

Pitch Mating

0.156 3.96mm

Glow Wire Compliant

Compliant

Rated Current Signal

7A
