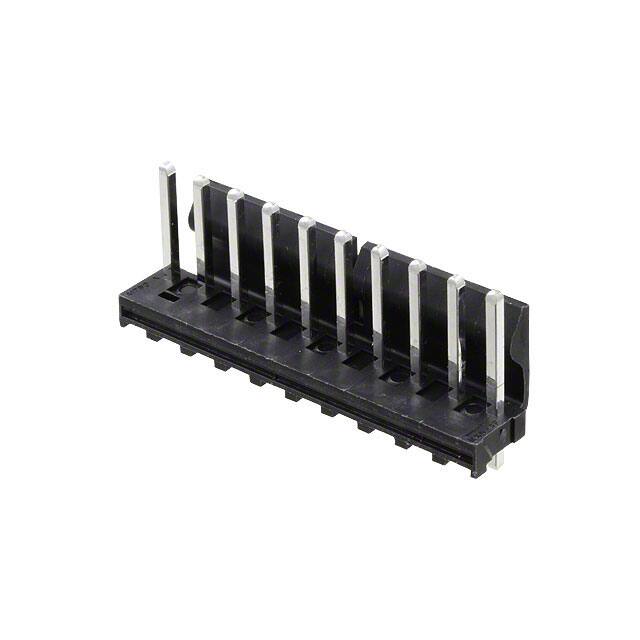

1718130010

Specifications

Contact Lengthmating

0.448 11.38mm

Body Breadth

0.394 inch

Insertion Forcemax

3.892 N

Insulation Materials

Polyamide (PA), Nylon

Reliability

COMMERCIAL

Contact Length Post

0.093 2.35mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Depth

0.446 inch

Yayın Yılı

2013

Parça Durumu

Active

Montaj Tipi

Through Hole

Housing Material

Nylon

Length Termination

0.092 inch

Contact Finish Thickness Mating

60.0μin 1.52μm

Terminal Adımı

3.9624mm

Lead Length

2.37mm

ECCN Kodu

EAR99

Number Of Pcb Rows

1

Flammability Rating

UL94 V-2

Shrouding

Shrouded - 1 Wall

Halogen Free

Low Halogen

Pozisyon Sayısı

10

Number Of Conductors

ONE

Sıra Sayısı

1

Contact Finish Thickness Post

60.0μin 1.52μm

Min. Çalışma Sıcaklığı

-40°C

Pcb Contact Pattern

RECTANGULAR

Glow Wire Compliant

Compliant

Pitch Mating

0.156 3.96mm

Overall Contact Length

0.671 17.05mm

Rated Current Signal

7A

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Style

Board to Board or Cable

Montaj

Through Hole

Ambalaj

Bulk

Contact Type

Male Pin

Orientation

Vertical

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant
