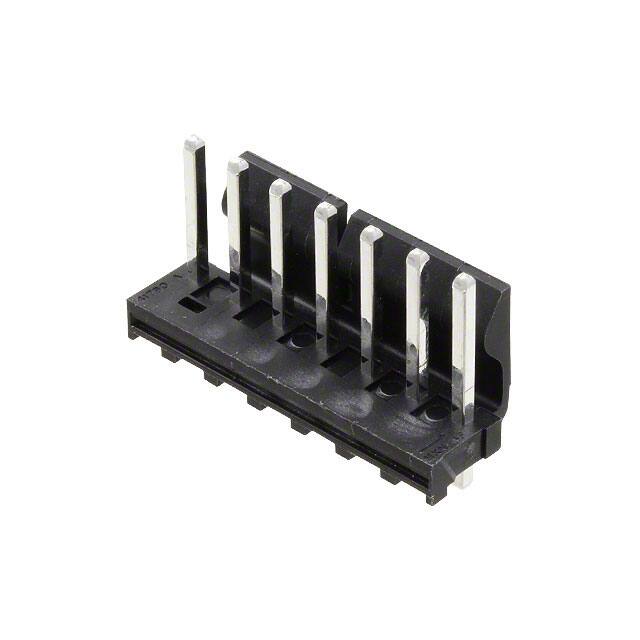

1718130007

Specifications

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.9452 N

Insulation Color

Black

Sıra Sayısı

1

Seri

KK 171813

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Overall Contact Length

0.671 17.05mm

Reference Standard

UL, CSA

Rated Current Signal

7A

Pitch Mating

0.156 3.96mm

HTS Kodu

8536.69.40.40

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Number Of Pcb Rows

1

Durability

25 Cycles

ECCN Kodu

EAR99

Number Of Conductors

ONE

Fabrika Tedarik Süresi

15 Weeks

Pozisyon Sayısı

7

Contact Materials

Brass

Number Of Positions Loaded

All

Fastening Type

Friction Lock

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Body Depth

0.446 inch

Contact Type

Male Pin

Contact Finish Mating

Tin

Insulation Height

0.446 11.33mm

Length Termination

0.092 inch

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Montaj Tipi

Through Hole

Body Breadth

0.394 inch

Insertion Forcemax

3.892 N

Connector Type

Header

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications
