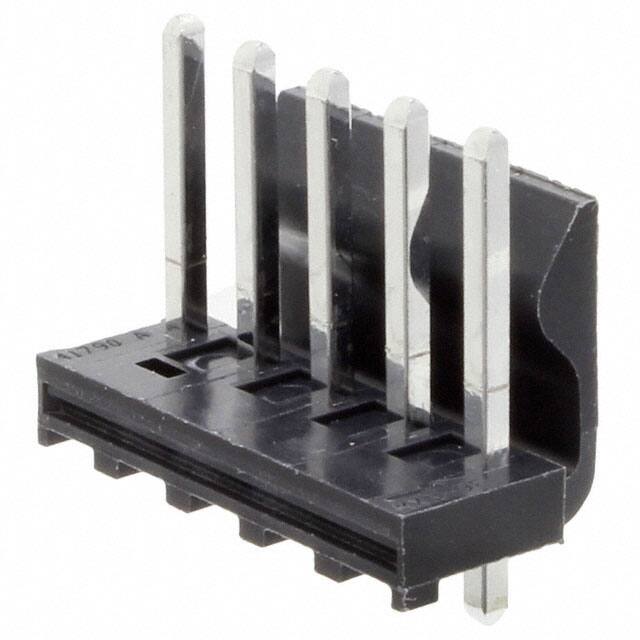

1718130005

Specifications

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Ambalaj

Bulk

Montaj

Through Hole

Style

Board to Board or Cable

Body Length Or Diameter

0.774 inch

RoHS Durumu

ROHS3 Compliant

Orientation

Vertical

Contact Finish Mating

Tin

Contact Type

Male Pin

Insulation Height

0.446 11.33mm

Terminal

Solder

Contact Gender

Male

Fabrika Tedarik Süresi

14 Weeks

Contact Materials

Brass

Number Of Positions Loaded

All

Fastening Type

Friction Lock

Maks. Çalışma Sıcaklığı

105°C

Mating Post Length

11.38mm

Insulation Color

Black

Seri

KK 171813

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Nominal Gerilim

250V

Reference Standard

UL, CSA

Akım Değeri

7A

Body Breadth

0.394 inch

Insertion Forcemax

3.892 N

Contact Lengthmating

0.448 11.38mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.093 2.35mm

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Yayın Yılı

2013

Body Depth

0.446 inch

Lead Length

2.37mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Terminal Adımı

3.9624mm

Length Termination

0.092 inch
