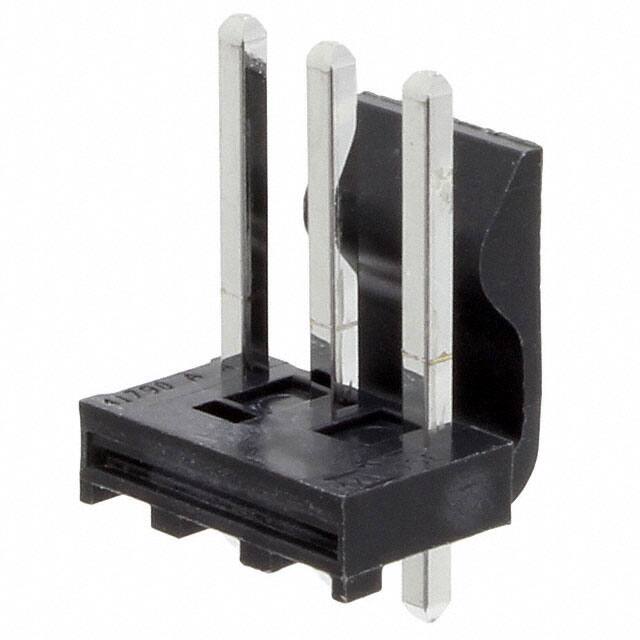

1718130003

Specifications

Contact Type

Male Pin

Contact Finish Mating

Tin

Body Depth

0.446 inch

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Through Hole

Length Termination

0.092 inch

Insulation Height

0.446 11.33mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Body Length Or Diameter

0.462 inch

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Ambalaj

Bulk

Contact Length Post

0.093 2.35mm

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171813

Sıra Sayısı

1

Insulation Color

Black

Withdrawl Forcemin

.9452 N

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.156 3.96mm

Overall Contact Length

0.671 17.05mm

Rated Current Signal

7A

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-2

Contact Shape

Square

ECCN Kodu

EAR99

Durability

25 Cycles

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Fastening Type

Friction Lock

Pozisyon Sayısı

3
