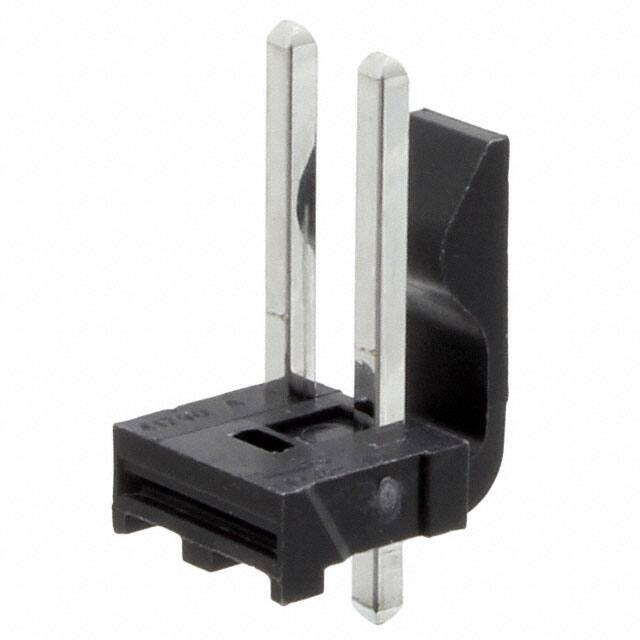

1718130002

Specifications

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Parça Durumu

Active

Contact Finish Mating

Tin

Contact Type

Male Pin

Body Depth

0.446 inch

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

60.0μin 1.52μm

Insulation Height

0.446 11.33mm

Body Breadth

0.394 inch

Connector Type

Header

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Operating Temperature Min

-40°C

Contact Length Post

0.093 2.35mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.306 inch

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171813

Sıra Sayısı

1

Insulation Color

Black

Reference Standard

UL, CSA

Rated Current Signal

7A

Overall Contact Length

0.671 17.05mm

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Pitch Mating

0.156 3.96mm

Number Of Pcb Rows

1

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

2

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks
