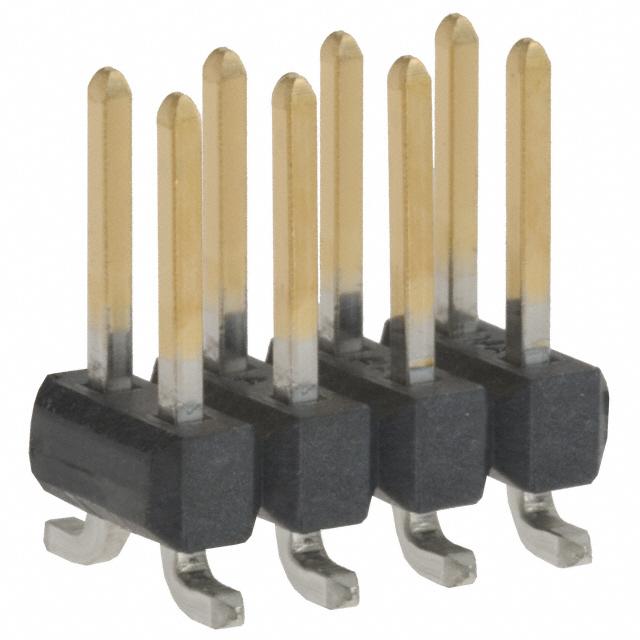

15-91-0080

Specifications

Contact Plating

Gold

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Glow Wire Compliant

Non-compliant

Terminal

Solder

Housing Color

Black

Mating Contact Row Spacing

0.1 inch

Pozisyon Sayısı

8

Contact Style

SQ PIN-SKT

Pitch

2.54mm

Montaj

Surface Mount

Contact Pattern

RECTANGULAR

Contact Resistance

15mOhm

Din Conformance

NO

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Min. Çalışma Sıcaklığı

-40°C

Reliability

COMMERCIAL

Body Length Or Diameter

0.39 inch

Lead Pitch

2.54mm

Plating Thickness

15μin

Filter Feature

NO

Contact Materials

Bronze

Bodyshell Style

RECEPTACLE

Kurşunsuz Kodu

yes

Reach Svhc

No SVHC

Iec Conformance

NO

Number Of Pcb Rows

2

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Reference Standard

UL, CSA

Mil Conformance

NO

Mixed Contacts

NO

Sıra Sayısı

2

Connector Type

BOARD CONNECTOR

Ul Flammability Code

94V-0

Housing Material

Thermoplastic

Additional Feature

C-GRID

Yayın Yılı

2007

Max Voltage Rating Dc

250.25kV
