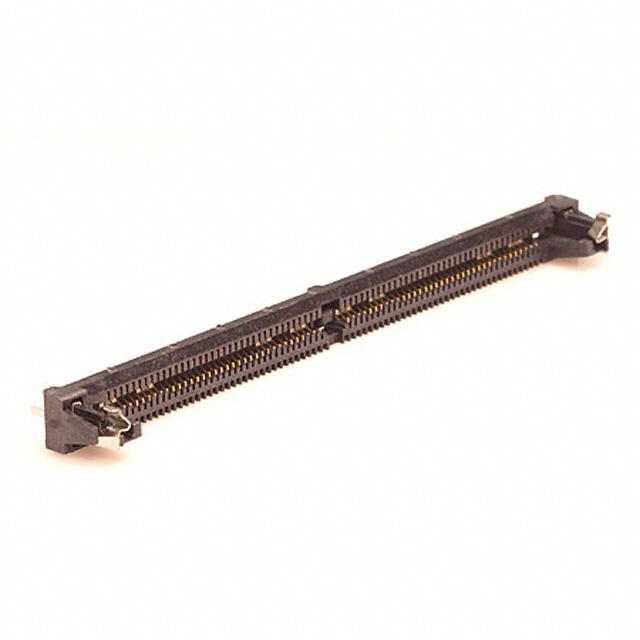

15-82-0788

Specifications

Pitch

1.27mm

Housing Color

Black

Kılıf / Paket

Module

Insertion Forcemax

ZIF N

Insulation Resistance

5GOhm

Body Breadth

0.34 inch

HTS Kodu

8536.69.40.40

Connector Type

CARD EDGE CONNECTOR

Sıra Sayısı

1

Mil Conformance

NO

Mixed Contacts

NO

Contact Plating

Gold

Kurşunsuz

Contains Lead

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

2

Iec Conformance

NO

Yayın Yılı

2006

Terminal

Through Hole

Number Of Conductors

ONE

Additional Feature

LATCHED

Pcb Contact Pattern

STAGGERED

Housing Material

Thermoplastic

Ul Flammability Code

94V-0

Plating Thickness

30μin

Number Of Contacts

72

Lead Pitch

1.27mm

Body Length Or Diameter

4.55 inch

ECCN Kodu

EAR99

Nominal Gerilim

250V

Pcb Contact Row Spacing

2.54 mm

Gender

Male

Bodyshell Style

SOCKET

Contact Materials

Bronze

Filter Feature

NO

Contact Finish Mating

NOT SPECIFIED

Length Termination

0.11 inch

Din Conformance

NO

Body Depth

0.54 inch

Memory Types

RAM

Montaj

Through Hole
