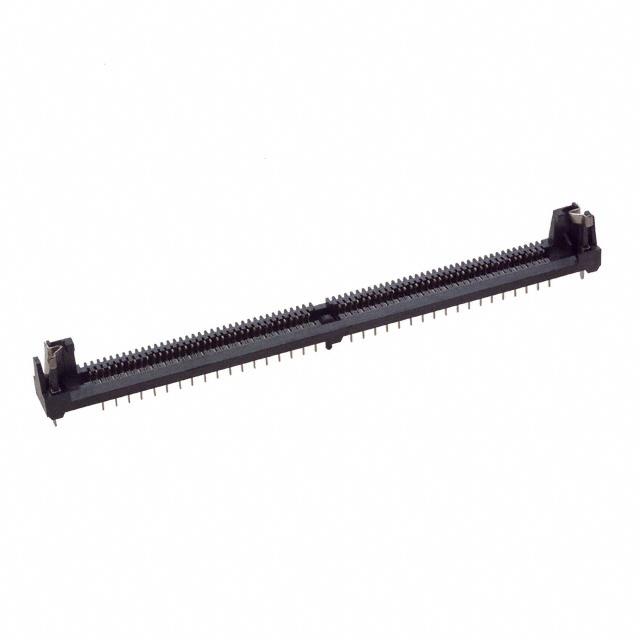

15-82-0777

Specifications

Insulator Color

BLACK

HTS Kodu

8536.69.40.40

Body Breadth

0.34 inch

Insertion Forcemax

ZIF N

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Number Of Pcb Rows

2

Mixed Contacts

NO

Mil Conformance

NO

Reference Standard

UL, CSA

Connector Type

CARD EDGE CONNECTOR

Sıra Sayısı

1

Dielectric Withstanding Voltage

1000VAC V

Ul Flammability Code

94V-0

Housing Material

Thermoplastic

Additional Feature

POLARIZED

Yayın Yılı

2006

ECCN Kodu

EAR99

Operating Temperature Max

85°C

Nominal Gerilim

250V

Operating Temperature Min

-40°C

Contact Gender

FEMALE

Total Number Of Contacts

72

Length Termination

0.11 inch

Body Depth

0.54 inch

Akım Değeri

1A

Contact Style

BELLOWED TYPE

Pozisyon Sayısı

72

Polarization Key

RIGHT

Pitch

1.27mm

Withdrawl Forcemin

ZIF N

Insulation Resistance

5000000000Ohm

Kılıf / Paket

Metal

Contact Plating

Tin

Pcb Contact Pattern

STAGGERED

Number Of Conductors

ONE

Terminal

Through Hole

Body Length Or Diameter

4.55 inch

Durability

25 Cycles

Lead Pitch

1.27mm
