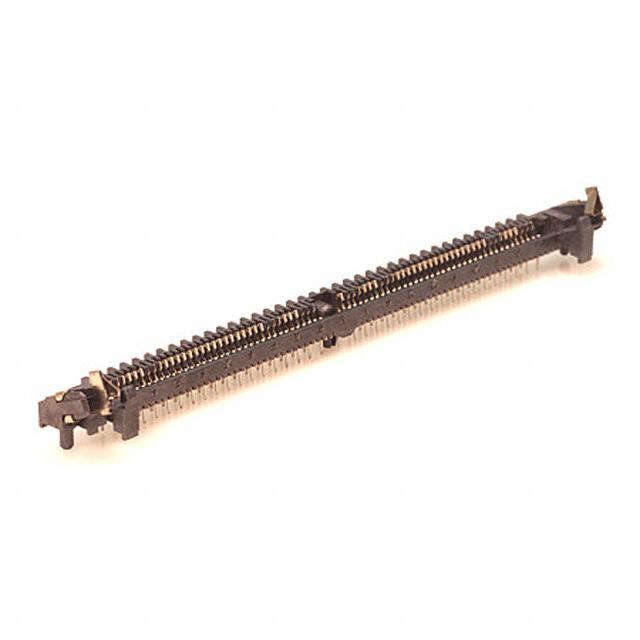

15-82-0678

Specifications

Pcb Contact Pattern

STAGGERED

Number Of Conductors

ONE

Terminal

Through Hole

Contact Plating

Gold, Tin

Withdrawl Forcemin

ZIF N

Insulation Resistance

5000000000Ohm

Contact Style

BELLOWED TYPE

Pozisyon Sayısı

80

Polarization Key

LEFT

Pitch

1.27mm

Rated Current Signal

1A

Option

GENERAL PURPOSE

Min. Çalışma Sıcaklığı

-40°C

Reliability

COMMERCIAL

Memory Types

RAM

Contact Resistance

30mOhm

Montaj

Through Hole

Din Conformance

NO

Contact Finish Mating

NOT SPECIFIED

Filter Feature

NO

Contact Materials

Bronze

Bodyshell Style

SOCKET

Pcb Contact Row Spacing

0.1 mm

Body Length Or Diameter

4.55 inch

Durability

25 Cycles

Lead Pitch

1.27mm

Number Of Contacts

72

Plating Thickness

200μin

Ul Flammability Code

94V-0

Housing Material

Thermoplastic

Additional Feature

LATCHED, POLARIZED

Yayın Yılı

2005

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Number Of Pcb Rows

2

Mixed Contacts

NO

Mil Conformance

NO

Reference Standard

UL, CSA

Connector Type

CARD EDGE CONNECTOR

Sıra Sayısı

1
