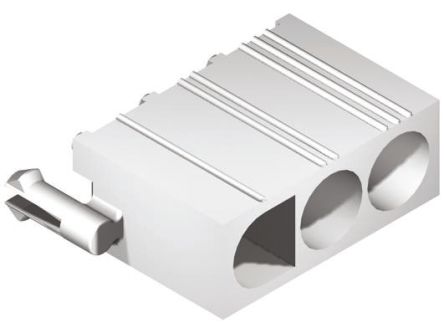

15-31-1036

Specifications

Glow Wire Compliant

Non-compliant

Kurşunsuz Kodu

yes

Contact Style

RND PIN-SKT

Number Of Conductors

ONE

Bodyshell Style

RECEPTACLE

Reference Standard

UL, CSA

Connector Type

Male Pin

Flammability Rating

UL94 V-2

Fabrika Tedarik Süresi

9 Weeks

Max Voltage Rating Ac

600V

Gender

Female

Fastening Type

Ramp

Housing Material

Nylon

Filter Feature

NO

Akım Değeri

12A

Mixed Contacts

NO

Halogen Free

Low Halogen

Pcb Contact Pattern

RECTANGULAR

Min. Çalışma Sıcaklığı

-40°C

Polarization Key

POLARIZED HOUSING

Number Of Contacts

3

Number Of Pcb Rows

1

Iec Conformance

NO

Contact Pattern

RECTANGULAR

Orientation

Vertical

Additional Feature

POLARIZED

Yayın Yılı

2002

Voltage Rated Dc

600V

Empty Shell

NO

Maks. Çalışma Sıcaklığı

105°C

Pitch

6.7mm

Montaj

Through Hole

Sıra Sayısı

1

Uzunluk

24.9mm

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Contact Plating

Tin

Parça Durumu

Active

Renk

Natural

Contact Materials

Brass
