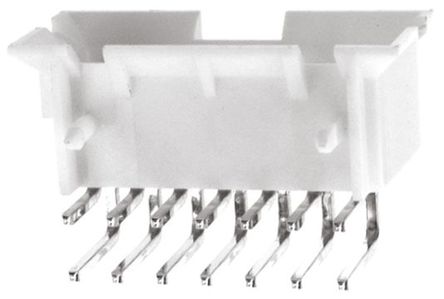

15-24-9144

Specifications

Contact Materials

Brass

Contact Plating

Tin

Total Number Of Contacts

14

Renk

Natural

Withdrawl Forcemin

3.1136 N

Sıra Sayısı

2

Montaj

Through Hole

Pitch

4.2mm

Insulation Resistance

1GOhm

RoHS Durumu

RoHS Compliant

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Terminal

Solder

Lead Pitch

4.2mm

JESD-609 Kodu

e3

Lead Length

3.3mm

Din Conformance

NO

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

1500VAC V

Ul Flammability Code

94V-0

Mil Conformance

NO

Radyasyon Dayanımı

No

Contact Resistance

10mOhm

Row Spacing Mating

4.191 mm

Contact Gender

Male

Shell Material

POLYAMIDE66

Max Voltage Rating Ac

600V

Connector Type

Male Pin, Plug

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

9 Weeks

Rated Current Signal

6A

Reference Standard

UL, CSA

Mixed Contacts

NO

Akım Değeri

13A

Filter Feature

NO

Pcb Contact Row Spacing

5.5118 mm

Housing Material

Nylon

Contact Style

SQ PIN-SKT

Kurşunsuz Kodu

yes

Pozisyon Sayısı

14
