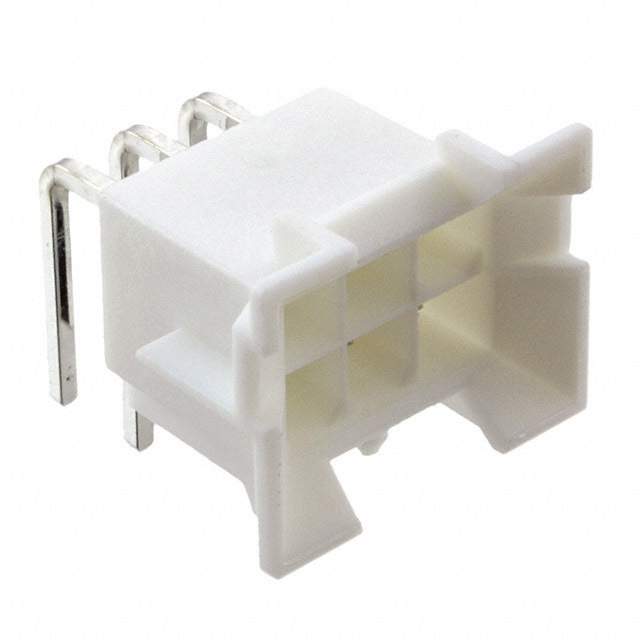

15-24-9064

Specifications

RoHS Durumu

RoHS Compliant

Pitch

4.2mm

Insulation Resistance

1GOhm

Sıra Sayısı

2

Withdrawl Forcemin

.5004 N

Montaj

Through Hole

Contact Materials

Brass

Renk

Natural

Parça Durumu

Active

Total Number Of Contacts

6

Contact Plating

Tin

Mil Conformance

NO

Ul Flammability Code

94V-0

Row Spacing Mating

4.191 mm

Contact Resistance

10mOhm

Radyasyon Dayanımı

No

Din Conformance

NO

ECCN Kodu

EAR99

Body Depth

0.814 inch

Terminal

Solder

Lead Pitch

4.2mm

Reliability

COMMERCIAL

Option

GENERAL PURPOSE

Plating Thickness

100μin

Number Of Conductors

ONE

Length Termination

0.13 inch

Pozisyon Sayısı

6

Glow Wire Compliant

Non-compliant

Contact Style

SQ PIN-SKT

Kurşunsuz Kodu

yes

Filter Feature

NO

Housing Material

Nylon

Mixed Contacts

NO

Akım Değeri

8A

Fabrika Tedarik Süresi

9 Weeks

Flammability Rating

UL94 V-0

Connector Type

Male Pin

Reference Standard

UL, CSA

Gender

Receptacle

Additional Feature

MINI-FIT
