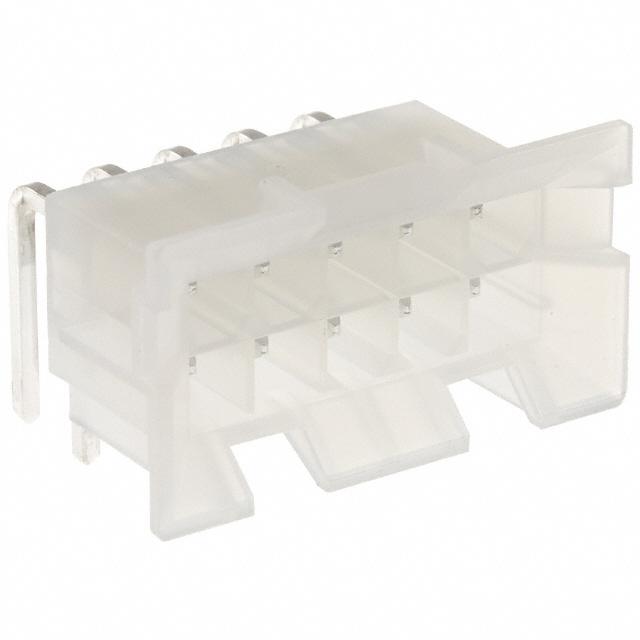

15-24-6100

Specifications

Empty Shell

NO

Maks. Çalışma Sıcaklığı

105°C

HTS Kodu

8536.69.40.30

Yayın Yılı

2009

Voltage Rated Dc

600V

Orientation

Right Angle, Vertical

Durability

30 Cycles

Additional Feature

MINI-FIT

Halogen Free

Low Halogen

Pcb Contact Pattern

RECTANGULAR

Min. Çalışma Sıcaklığı

-40°C

Body Breadth

0.591 inch

Number Of Pcb Rows

2

Polarization Key

POLARIZED HOUSING

Iec Conformance

NO

Contact Pattern

RECTANGULAR

Housing Material

Nylon

Filter Feature

NO

Pcb Contact Row Spacing

5.5118 mm

Akım Değeri

13A

Mixed Contacts

NO

Reference Standard

UL, CSA

Flammability Rating

UL94 V-2

Connector Type

Male Pin, Plug

Fabrika Tedarik Süresi

9 Weeks

Max Voltage Rating Ac

600V

Number Of Conductors

ONE

Bodyshell Style

RECEPTACLE

Pozisyon Sayısı

10

Glow Wire Compliant

Non-compliant

Kurşunsuz Kodu

yes

Contact Style

SQ PIN-SKT

JESD-609 Kodu

e3

Yükseklik

15mm

Lead Pitch

4.2mm

Terminal

Solder

Reliability

COMMERCIAL

Housing Color

White

Depth

20.7mm

Option

GENERAL PURPOSE
