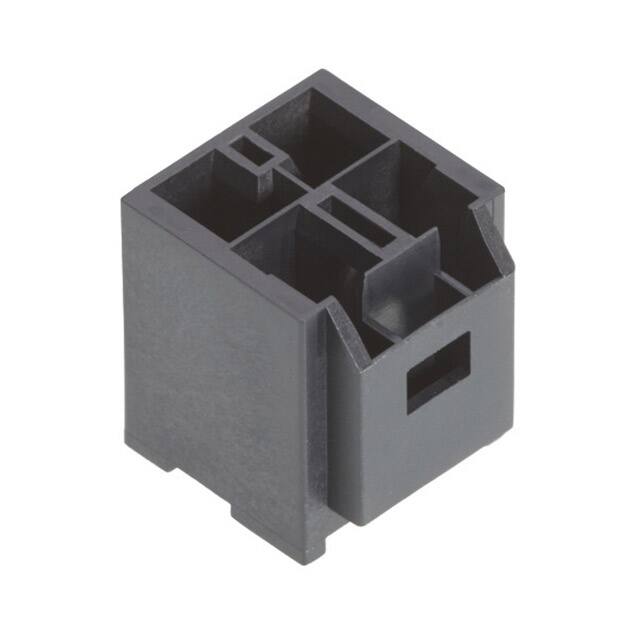

1510481406

Specifications

Contact Lengthmating

0.348 8.85mm

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

4

Terminal

Kinked Pin, Solder

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Fastening Type

Latch Holder

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Pitch Mating

0.256 6.50mm

Row Spacing Mating

0.256 (6.50mm)

Ambalaj

Tray

Contact Finish Thickness Mating

50.0μin 1.27μm

Fabrika Tedarik Süresi

12 Weeks

Montaj Tipi

Through Hole

Contact Length Post

0.150 3.81mm

Style

Board to Cable/Wire

Applications

General Purpose, Industrial

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Contact Materials

Copper Alloy

Sıra Sayısı

2

Insulation Height

0.630 16.00mm

Parça Durumu

Active

Seri

CP-6.5 151048

Shrouding

Shrouded - 4 Wall

Contact Finish Mating

Tin

ECCN Kodu

EAR99

Contact Shape

Square

Yayın Yılı

2015

Özellikler

Board Guide

Connector Type

Header
