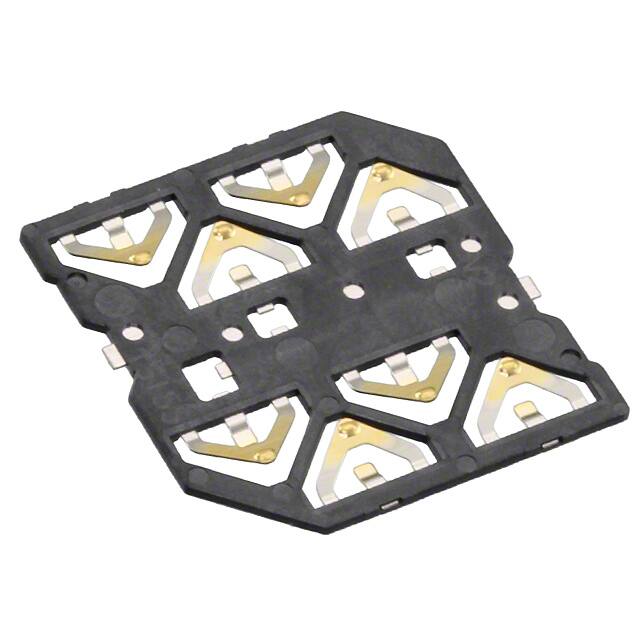

1510320001

Specifications

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Seri

151032

Contact Materials

NOT SPECIFIED

Parça Durumu

Obsolete

Sıra Sayısı

4

Plating Thickness

50μin

Body Length Or Diameter

0.499 inch

ECCN Kodu

EAR99

Connector Type

Connector

Mounting Feature

Normal, Standard - Top

Height Above Board

0.014 0.35mm

Yayın Yılı

2014

Contact Gender

FEMALE

Operating Temperature Max

85°C

Number Of Pcb Rows

4

Reliability

COMMERCIAL

Pcb Contact Pattern

STAGGERED

Ambalaj

Tape & Reel (TR)

Mating Contact Row Spacing

0.1 inch

Fabrika Tedarik Süresi

16 Weeks

Insertion Removal Method

Push In, Pull Out

Insulator Color

BLACK

Montaj Tipi

Surface Mount, Right Angle

Rated Current Signal

0.5A

Contact Finish

Gold

Contact Pattern

STAGGERED

Insulation Resistance

1000000000Ohm

JESD-609 Kodu

e4

Pcb Contact Row Spacing

2.54 mm

Contact Finish Thickness

5.00μin 0.127μm

Body Breadth

0.38 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.3 inch

Number Of Ports

1

Operating Temperature Min

-30°C

Total Number Of Contacts

8

Reference Standard

UL

Pozisyon Sayısı

6

Number Of Conductors

ONE

Body Depth

0.513 inch
