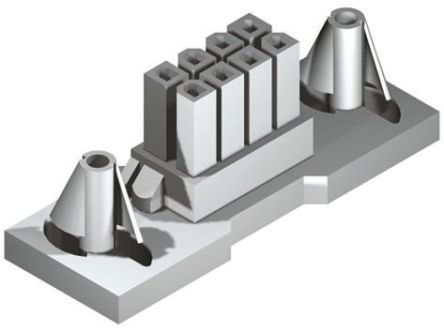

15-06-0181

Specifications

Contact Style

SQ PIN-SKT

Maks. Çalışma Sıcaklığı

105°C

Empty Shell

NO

Akım Değeri

9A

Halogen Free

Low Halogen

Fabrika Tedarik Süresi

9 Weeks

Connector Type

Receptacle, Socket

Mixed Contacts

NO

RoHS Durumu

RoHS Compliant

Withdrawl Forcemin

.5004 N

Contact Finish Mating

NOT SPECIFIED

Option

GENERAL PURPOSE

Housing Color

Natural

HTS Kodu

8536.69.40.30

Housing Material

Nylon

Contact Gender

Female

Din Conformance

NO

Parça Durumu

Active

Kurşunsuz Kodu

yes

Montaj

Panel

Filter Feature

NO

Mil Conformance

NO

Reliability

COMMERCIAL

Contact Materials

Brass

Reach Svhc

Unknown

Insulation Resistance

1000000000Ohm

Uzunluk

69.6mm

Iec Conformance

NO

Terminal

Crimp

Max Voltage Rating Ac

600V

Orientation

Straight

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Depth

19.6mm

Additional Feature

MINI-FIT

Shell Material

POLYAMIDE66

Contact Plating

Tin

Flammability Rating

UL94 V-0

Contact Resistance

10mOhm

Current Rating Max

11A
