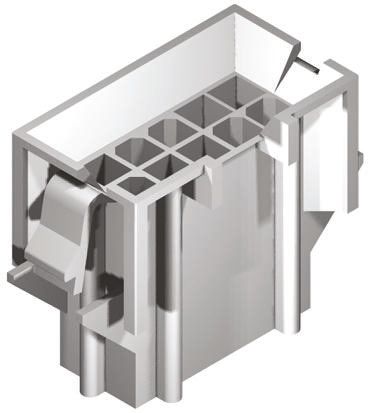

15-06-0146

Specifications

Din Conformance

NO

Parça Durumu

Active

Kurşunsuz Kodu

yes

Montaj

Panel, Snap in

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Filter Feature

NO

Mil Conformance

NO

Reliability

COMMERCIAL

Reach Svhc

Unknown

Insulation Resistance

1000000000Ohm

Uzunluk

36.8mm

Iec Conformance

NO

Terminal

Crimp

Orientation

Straight

Wire Size Max

16 AWG

Ul Flammability Code

94V-0

Depth

25.6mm

Additional Feature

MINI-FIT BMI

Shell Material

POLYAMIDE66

Contact Style

SQ PIN-SKT

Maks. Çalışma Sıcaklığı

105°C

Insulation Diametermin

0.035 inch

Empty Shell

YES

Akım Değeri

13A

Halogen Free

Low Halogen

Fabrika Tedarik Süresi

8 Weeks

Connector Type

Male Pin, Pin, Plug

Mixed Contacts

NO

RoHS Durumu

RoHS Compliant

Withdrawl Forcemin

3.1136 N

Polarization Key

CENTER

Option

GENERAL PURPOSE

Pozisyon Sayısı

14

HTS Kodu

8536.69.40.30

Housing Material

Nylon

Genişlik

16.8mm

Total Number Of Contacts

14

Glow Wire Compliant

Non-compliant

Renk

White

Min. Çalışma Sıcaklığı

-40°C
