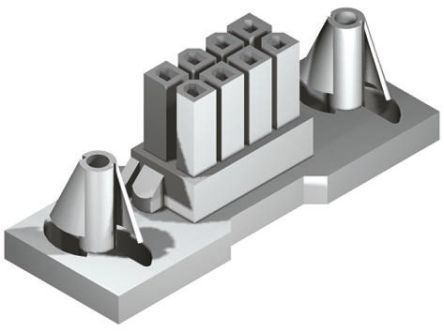

15-06-0141

Specifications

Parça Durumu

Active

Kurşunsuz Kodu

yes

Din Conformance

NO

Contact Materials

Brass

Montaj

Panel

Reliability

COMMERCIAL

Filter Feature

NO

Mil Conformance

NO

Max Voltage Rating Ac

600V

Iec Conformance

NO

Terminal

Crimp

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Orientation

Straight

Reach Svhc

Unknown

Uzunluk

61.2mm

Insulation Resistance

1000000000Ohm

Contact Plating

Tin

Shell Material

POLYAMIDE66

Depth

19.6mm

Additional Feature

MINI-FIT

Contact Style

SQ PIN-SKT

Maks. Çalışma Sıcaklığı

105°C

Akım Değeri

13A

Halogen Free

Low Halogen

Empty Shell

NO

Mixed Contacts

NO

Connector Type

Receptacle, Socket

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

9 Weeks

HTS Kodu

8536.69.40.30

Contact Gender

Female

Housing Material

Nylon

Withdrawl Forcemin

.5004 N

Option

GENERAL PURPOSE

Genişlik

17.3mm

Min. Çalışma Sıcaklığı

-40°C

Renk

Natural

Glow Wire Compliant

Non-compliant

Sıra Sayısı

2
