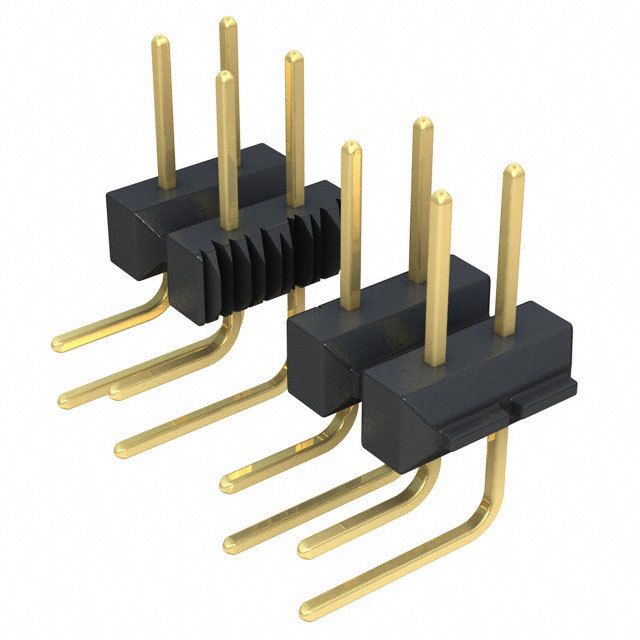

10-89-4222

Specifications

Sıra Sayısı

2

Housing Material

Polyester

Option

GENERAL PURPOSE

Total Number Of Contacts

22

Number Of Pcb Rows

2

Contact Gender

Male

Operating Temperature Min

-40°C

Nominal Gerilim

250V

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Terminal

Solder

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

2.54 mm

Akım Değeri

3A

Genişlik

2.29mm

Elv

Compliant

Renk

Black

Kurşunsuz

Lead Free

Iec Conformance

NO

Mating Post Length

6.1mm

Contact Lengthmating

6.096mm

Yükseklik

5.59mm

Pitch

2.54mm

Fabrika Tedarik Süresi

9 Weeks

ECCN Kodu

EAR99

Din Conformance

NO

Contact Pattern

RECTANGULAR

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Plating Thickness

15μin

Additional Feature

C-GRID, HIGH PROFILE

Uzunluk

27.7mm

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Operating Temperature Max

105°C

Parça Durumu

Active

Yayın Yılı

2013

Connector Type

Male Pin

Insulation Resistance

1000000000Ohm

Bodyshell Style

RECEPTACLE
