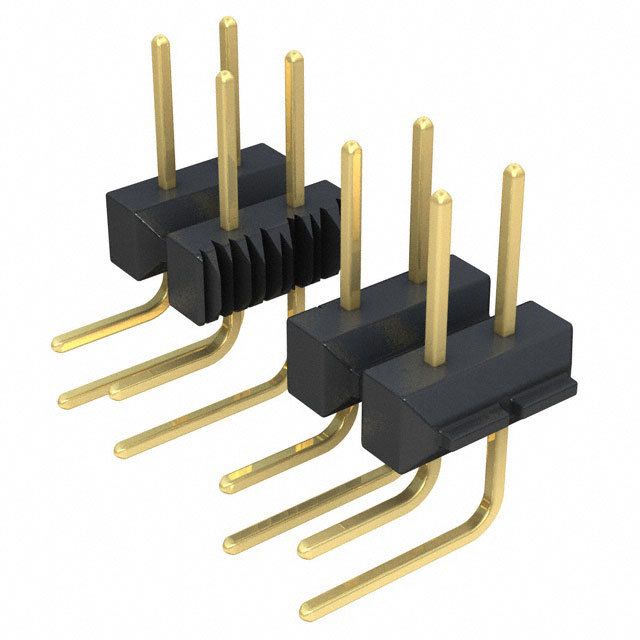

10-89-4186

Specifications

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Operating Temperature Min

-40°C

Nominal Gerilim

250V

Total Number Of Contacts

18

Number Of Pcb Rows

2

Gender

Male

Sıra Sayısı

2

Housing Material

Plastic

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Din Conformance

NO

Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

7 Weeks

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Renk

Black

Iec Conformance

NO

Kurşunsuz

Lead Free

Contact Lengthmating

6.096mm

Yükseklik

5.59mm

Pitch

2.54mm

Contact Materials

Bronze

Genişlik

2.29mm

Akım Değeri

3A

Elv

Compliant

Reliability

COMMERCIAL

Row Spacing Mating

2.54 mm

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Flammability Rating

UL94 V-0

Montaj

Through Hole

Dielectric Withstanding Voltage

600VAC V

Pozisyon Sayısı

18

Insulation Resistance

1000000000Ohm

Connector Type

Male Pin

Parça Durumu

Active

Yayın Yılı

2013

Filter Feature

NO

Bodyshell Style

RECEPTACLE

RoHS Durumu

RoHS Compliant
