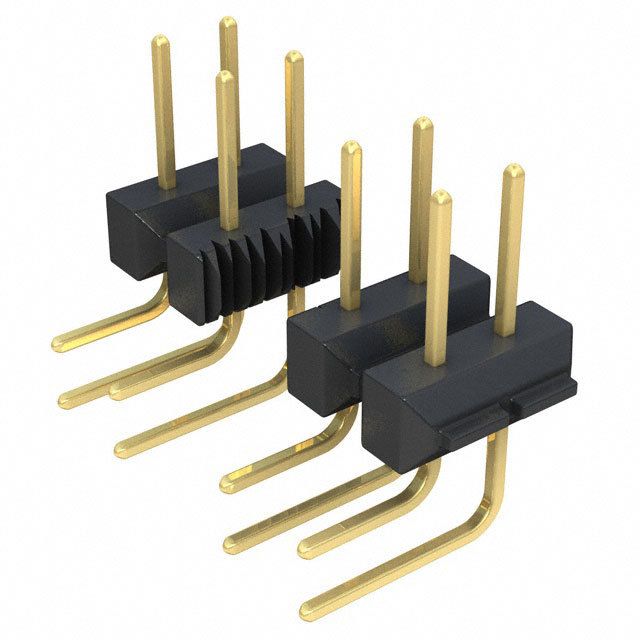

10-89-4142

Specifications

Glow Wire Compliant

Non-compliant

HTS Kodu

8536.69.40.40

Mixed Contacts

NO

Maks. Çalışma Sıcaklığı

105°C

Material

Brass

Rated Current Signal

3A

Contact Style

SQ PIN-SKT

Contact Plating

Gold, Tin

Reference Standard

UL, CSA

Kurşunsuz Kodu

yes

Orientation

Right Angle

Mil Conformance

NO

Filter Feature

NO

Bodyshell Style

RECEPTACLE

Insulation Resistance

1000000000Ohm

Connector Type

Male Pin

Yayın Yılı

2013

Max Voltage Rating Dc

250.25kV

Parça Durumu

Active

Pozisyon Sayısı

14

Dielectric Withstanding Voltage

600VAC V

Montaj

Through Hole

Flammability Rating

UL94 V-0

Lead Pitch

2.54mm

Uzunluk

17.5mm

Additional Feature

C-GRID, HIGH PROFILE

Plating Thickness

15μin

RoHS Durumu

RoHS Compliant

Number Of Conductors

ONE

Yükseklik

5.59mm

Pitch

2.54mm

Contact Lengthmating

6.096mm

Contact Materials

Bronze

Kurşunsuz

Lead Free

Iec Conformance

NO

Renk

Black

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR

Din Conformance

NO

ECCN Kodu

EAR99
