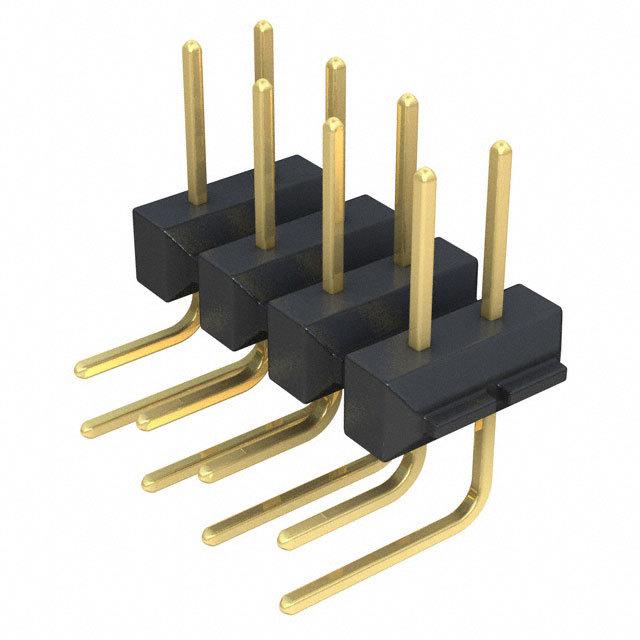

10-89-4086

Specifications

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

ECCN Kodu

EAR99

Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

9 Weeks

Contact Lengthmating

6.096mm

Pitch

2.54mm

Yükseklik

5.59mm

Contact Materials

Bronze

Renk

Black

Iec Conformance

NO

Kurşunsuz

Lead Free

Elv

Compliant

Genişlik

2.29mm

Akım Değeri

3A

Reliability

COMMERCIAL

Row Spacing Mating

2.54 mm

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Operating Temperature Min

-40°C

Nominal Gerilim

250V

Total Number Of Contacts

8

Number Of Pcb Rows

2

Gender

Male

Option

GENERAL PURPOSE

Sıra Sayısı

2

Housing Material

Plastic

Glow Wire Compliant

Non-compliant

Reference Standard

UL, CSA

Kurşunsuz Kodu

yes

Orientation

Right Angle

Mil Conformance

NO

Mixed Contacts

NO

Material

Brass

Rated Current Signal

3A

Contact Plating

Gold

Contact Style

SQ PIN-SKT

Dielectric Withstanding Voltage

600VAC V
