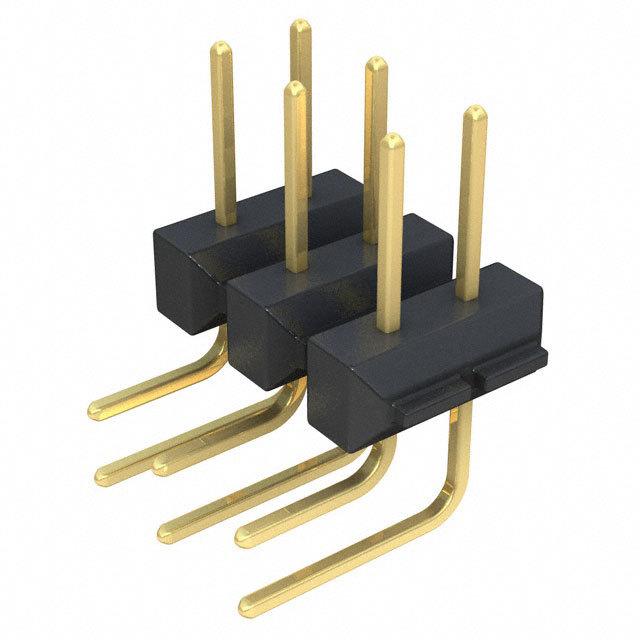

10-89-4066

Specifications

Number Of Pcb Rows

2

Total Number Of Contacts

6

Option

GENERAL PURPOSE

Housing Material

Polyester

Sıra Sayısı

2

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Contact Gender

Male

Nominal Gerilim

250V

Operating Temperature Min

-40°C

Elv

Compliant

Akım Değeri

3A

Genişlik

2.29mm

Terminal

Solder

Row Spacing Mating

2.54 mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

9 Weeks

Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Din Conformance

NO

Mating Post Length

6.1mm

Pitch

2.54mm

Yükseklik

5.59mm

Contact Lengthmating

6.096mm

Kurşunsuz

Lead Free

Iec Conformance

NO

Renk

Black

Operating Temperature Max

105°C

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Uzunluk

7.37mm

Additional Feature

C-GRID, HIGH PROFILE

Plating Thickness

30μin

Pozisyon Sayısı

6

Montaj

Through Hole

Flammability Rating

UL94 V-0

Bodyshell Style

RECEPTACLE

Filter Feature

NO
