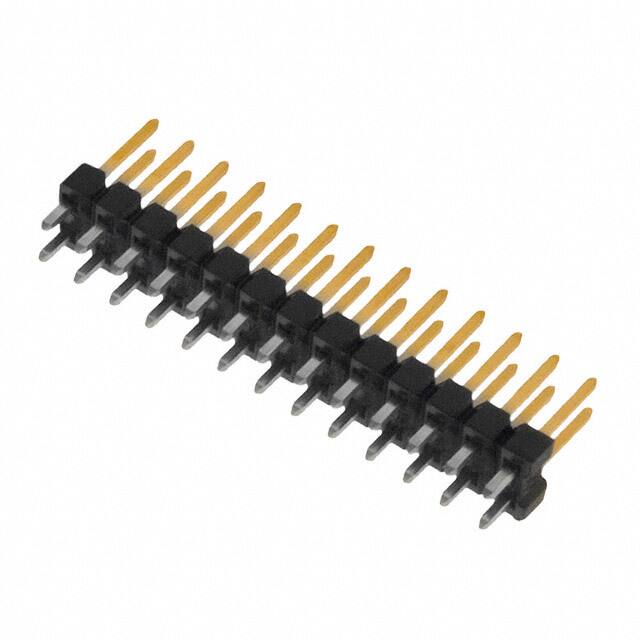

10-89-1261

Specifications

Mixed Contacts

NO

Overall Contact Length

0.437 11.10mm

Fastening Type

Push-Pull

Rated Current Signal

3A

Contact Resistance

15mOhm

Reference Standard

UL, CSA

Mil Conformance

NO

Orientation

Vertical

Style

Board to Board or Cable

Contact Length Post

0.107 2.71mm

Number Of Positions Loaded

All

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Additional Feature

BREAKAWAY TYPE

Plating Thickness

15μin

Operating Temperature Max

105°C

Number Of Conductors

ONE

RoHS Durumu

Non-RoHS Compliant

Filter Feature

NO

Length Termination

0.11 inch

Parça Durumu

Obsolete

Mating Contact Pitch

0.1 inch

Yayın Yılı

2005

Insulation Resistance

1000000000Ohm

Connector Type

Header, Breakaway

Seri

C-Grid 8624

Durability

50 Cycles

Insulation Color

Black

Dielectric Withstanding Voltage

600VAC V

Insulation Height

0.090 2.29mm

Montaj

Through Hole

Montaj Tipi

Through Hole

Terminal

Solder

Reliability

COMMERCIAL

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

Number Of Contacts

26

Ambalaj

Bulk

Akım Değeri

3A

Material Flammability Rating

UL94 V-0
