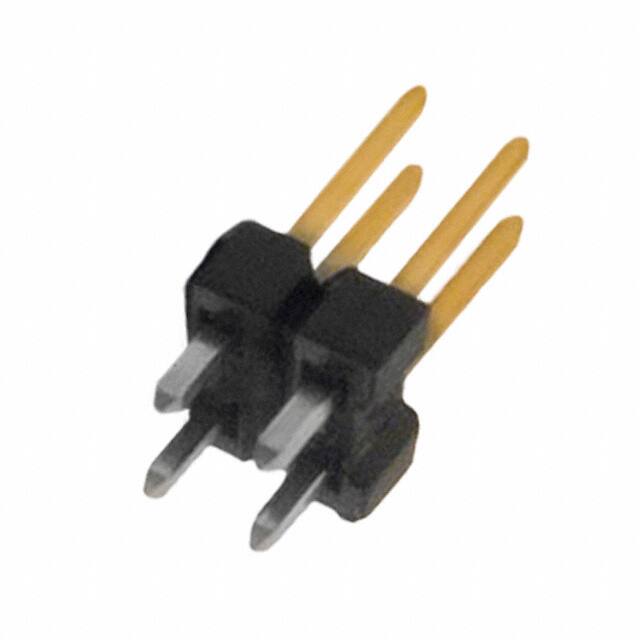

10-89-1041

Specifications

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Contact Length Post

0.107 2.71mm

Mil Conformance

NO

Orientation

Vertical

Style

Board to Board or Cable

Contact Resistance

15mOhm

Reference Standard

UL, CSA

Fastening Type

Push-Pull

Rated Current Signal

3A

Maks. Çalışma Sıcaklığı

105°C

Mixed Contacts

NO

Overall Contact Length

0.437 11.10mm

Montaj

Through Hole

Insulation Height

0.090 2.29mm

Durability

50 Cycles

Seri

C-Grid 8624

Dielectric Withstanding Voltage

600VAC V

Parça Durumu

Obsolete

Max Voltage Rating Dc

250.25kV

Yayın Yılı

2005

Mating Contact Pitch

0.1 inch

Connector Type

Header, Breakaway

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Number Of Conductors

ONE

RoHS Durumu

Non-RoHS Compliant

Depth

5.08mm

Plating Thickness

15μin

Max Voltage Rating Ac

250V

Additional Feature

BREAKAWAY TYPE

Uzunluk

4.83mm

ECCN Kodu

EAR99

Contact Finish Thickness Mating

15.0μin 0.38μm

Din Conformance

NO

Housing Color

Black

Shrouding

Unshrouded

Iec Conformance

NO

Contact Materials

Phosphor Bronze

Contact Lengthmating

0.240 6.10mm
