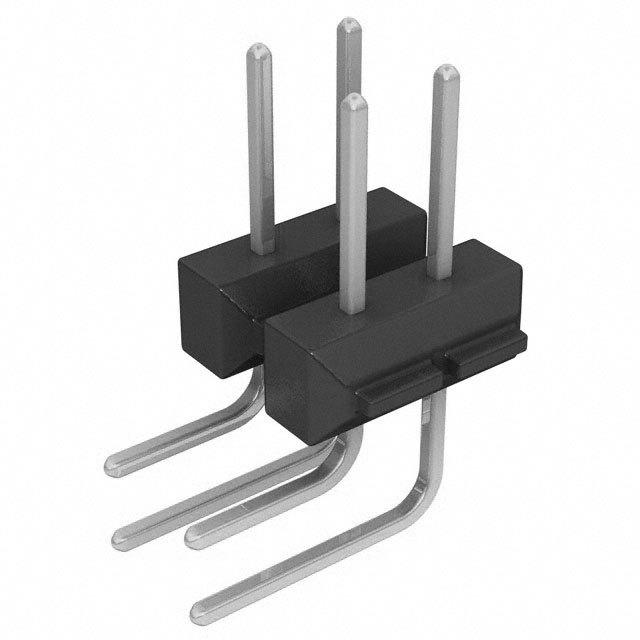

10-88-3081

Specifications

Option

GENERAL PURPOSE

Sıra Sayısı

2

Housing Material

Polyester

Gender

Male

Total Number Of Contacts

8

Number Of Pcb Rows

2

Min. Çalışma Sıcaklığı

-40°C

Nominal Gerilim

250V

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Terminal

Solder

Reliability

COMMERCIAL

Row Spacing Mating

2.54 mm

Pcb Contact Pattern

RECTANGULAR

Elv

Compliant

Akım Değeri

3A

Genişlik

2.29mm

Contact Materials

Bronze

Contact Lengthmating

10.6426mm

Pitch

2.54mm

Yükseklik

5.59mm

Renk

Black

Kurşunsuz

Lead Free

Iec Conformance

NO

Fabrika Tedarik Süresi

9 Weeks

ECCN Kodu

EAR99

Din Conformance

NO

Contact Pattern

RECTANGULAR

Uzunluk

9.91mm

Additional Feature

C-GRID, HIGH PROFILE

Plating Thickness

150μin

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Bodyshell Style

RECEPTACLE

Filter Feature

NO

Parça Durumu

Active

Max Voltage Rating Dc

250.25kV

Yayın Yılı

2013

Connector Type

Male Pin

Insulation Resistance

1000000000Ohm
