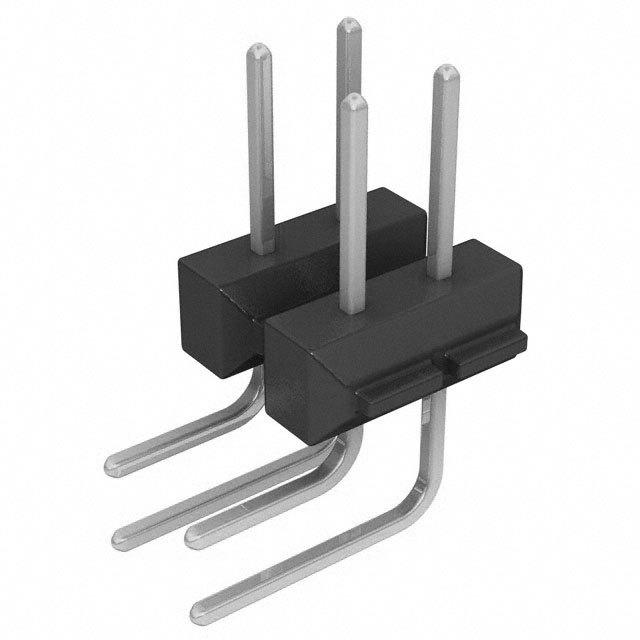

10-88-3041

Specifications

Material

Brass

Contact Style

SQ PIN-SKT

Contact Plating

Tin

Mixed Contacts

NO

Maks. Çalışma Sıcaklığı

105°C

Kurşunsuz Kodu

yes

Mil Conformance

NO

Orientation

Right Angle, Vertical

Reference Standard

UL

Lead Length

2.79mm

Glow Wire Compliant

Non-compliant

Plating Thickness

150μin

Uzunluk

4.83mm

Additional Feature

C-GRID, HIGH PROFILE

RoHS Durumu

RoHS Compliant

Number Of Conductors

ONE

Connector Type

Male Pin

Insulation Resistance

1000000000Ohm

Yayın Yılı

2013

Parça Durumu

Active

Max Voltage Rating Dc

250.25kV

Filter Feature

NO

Bodyshell Style

RECEPTACLE

Montaj

Through Hole

Flammability Rating

UL94 V-0

Pozisyon Sayısı

4

Dielectric Withstanding Voltage

600VAC V

Row Spacing Mating

2.54 mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Terminal

Solder

Genişlik

2.29mm

Akım Değeri

3A

Elv

Compliant

Kurşunsuz

Lead Free

Iec Conformance

NO

Renk

Black

Pitch

2.54mm

Yükseklik

5.59mm

Contact Lengthmating

6.096mm
