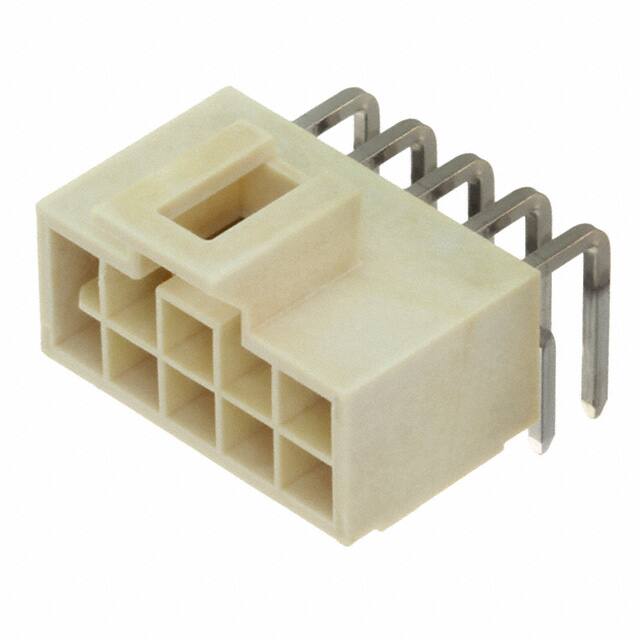

1053142310

Specifications

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Seri

Nano-Fit 105314

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Pozisyon Sayısı

10

Sıra Sayısı

2

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Din Conformance

NO

Filter Feature

NO

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

Not Applicable

Ambalaj

Tray

HTS Kodu

8536.69.40.30

Özellikler

Board Guide

Contact Materials

Brass

Contact Length Post

0.138 3.50mm

Terminal

Solder

Contact Shape

Square

Iec Conformance

NO

Contact Type

Male Pin

Additional Feature

POLARIZED

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Insulation Color

Natural

Mixed Contacts

NO

Yayın Yılı

2016

Pitch Mating

0.098 2.50mm

Insulation Height

0.247 6.28mm

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fabrika Tedarik Süresi

10 Weeks

Empty Shell

NO
