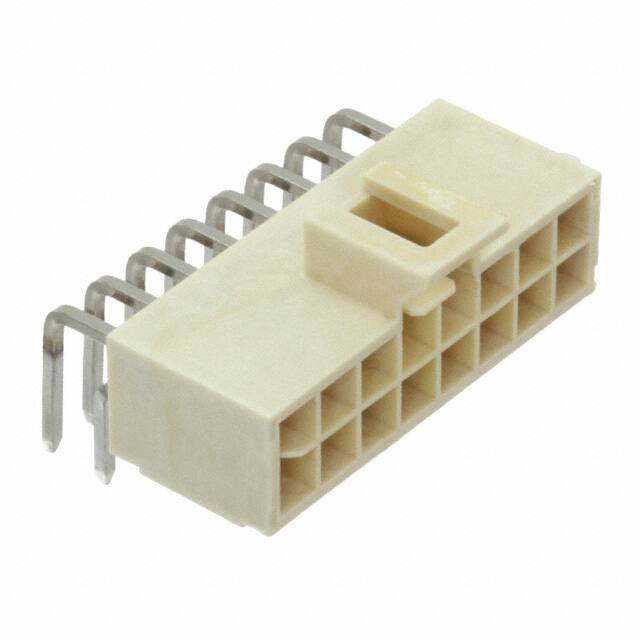

1053142216

Specifications

Seri

Nano-Fit 105314

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Mating

Gold

Sıra Sayısı

2

Pozisyon Sayısı

16

Ul Flammability Code

94V-0

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole, Right Angle

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Din Conformance

NO

Contact Finish Thickness Mating

15.0μin 0.38μm

Çalışma Sıcaklığı

-40°C~105°C

Terminal

Solder

Contact Length Post

0.138 3.50mm

Contact Materials

Brass

Özellikler

Board Guide

HTS Kodu

8536.69.40.30

Ambalaj

Tray

Nem Hassasiyeti (MSL)

Not Applicable

Style

Board to Cable/Wire

Filter Feature

NO

Mixed Contacts

NO

Insulation Color

Natural

Shrouding

Shrouded - 4 Wall

Contact Type

Male Pin

Additional Feature

POLARIZED

Mil Conformance

NO

Iec Conformance

NO

Contact Shape

Square

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Insulation Height

0.247 6.28mm

Pitch Mating

0.098 2.50mm

Yayın Yılı

2016

Fastening Type

Latch Holder

Contact Finish Post

Tin
