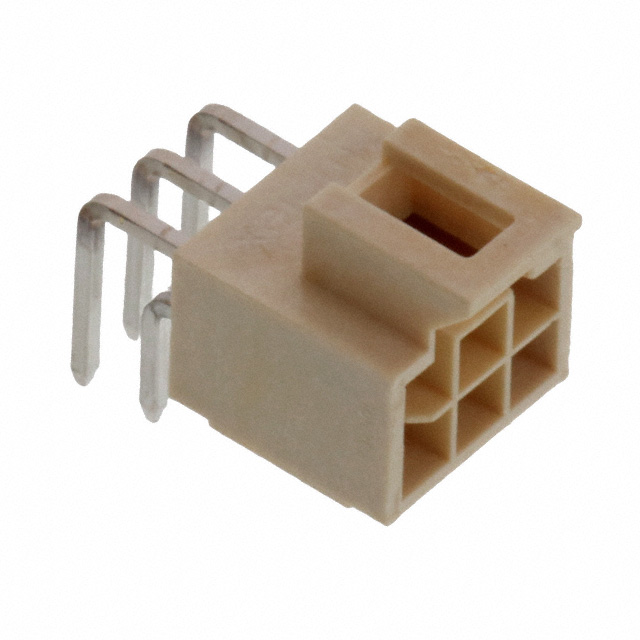

1053142206

Specifications

Terminal

Solder

Contact Length Post

0.138 3.50mm

Contact Materials

Brass

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

Not Applicable

Ambalaj

Tray

Özellikler

Board Guide

Filter Feature

NO

Mixed Contacts

NO

Insulation Color

Natural

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Additional Feature

POLARIZED, SHROUDED

Contact Type

Male Pin

Iec Conformance

NO

Contact Shape

Square

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Insulation Height

0.247 6.28mm

Kurşunsuz Kodu

yes

Pitch Mating

0.098 2.50mm

Yayın Yılı

2016

Fastening Type

Latch Holder

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Empty Shell

NO

Connector Type

Header

Seri

Nano-Fit 105314

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Row Spacing Mating

0.098 (2.50mm)

Sıra Sayısı

2

Pozisyon Sayısı

6

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Din Conformance

NO
