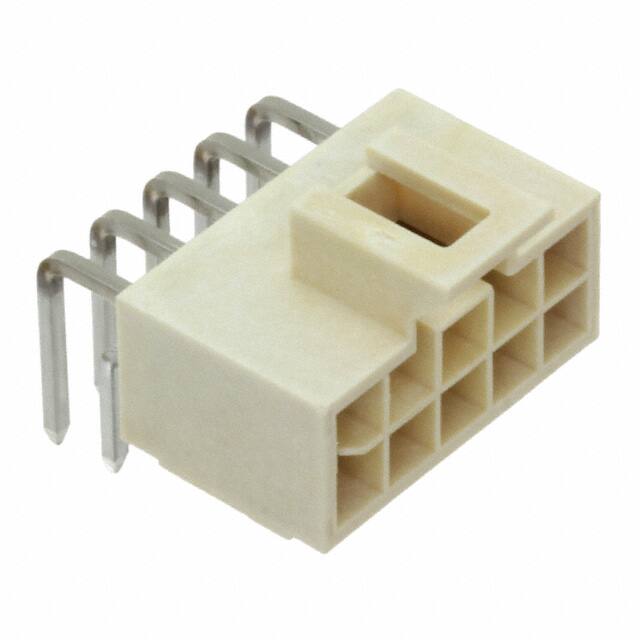

1053142110

Specifications

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Din Conformance

NO

Contact Finish Thickness Mating

59.0μin 1.50μm

Çalışma Sıcaklığı

-40°C~105°C

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Seri

Nano-Fit 105314

Number Of Positions Loaded

All

Contact Finish Mating

Tin

Row Spacing Mating

0.098 (2.50mm)

Pozisyon Sayısı

10

Sıra Sayısı

2

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Contact Finish Thickness Post

59.0μin 1.50μm

Insulation Height

0.247 6.28mm

Nominal Gerilim

250V

Yayın Yılı

2016

Pitch Mating

0.098 2.50mm

Fastening Type

Latch Holder

Connector Type

Header

Empty Shell

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Length Post

0.138 3.50mm

Contact Materials

Brass

Terminal

Solder

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

HTS Kodu

8536.69.40.30

Özellikler

Board Guide

Filter Feature

NO

Shrouding

Shrouded - 4 Wall

Mixed Contacts

NO

Insulation Color

Natural

Iec Conformance

NO

Contact Shape

Square

Mil Conformance

NO
