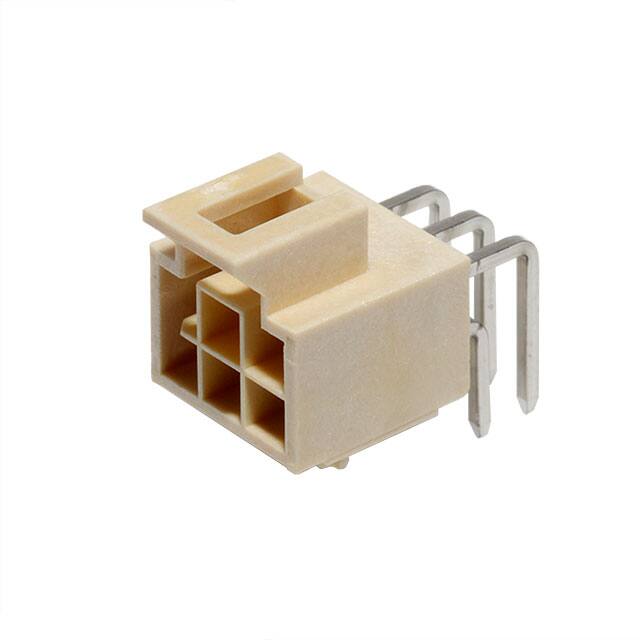

1053142106

Specifications

Contact Finish Mating

Tin

Row Spacing Mating

0.098 (2.50mm)

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Seri

Nano-Fit 105314

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Pozisyon Sayısı

6

Sıra Sayısı

2

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Çalışma Sıcaklığı

-40°C~105°C

Din Conformance

NO

Contact Finish Thickness Mating

59.0μin 1.50μm

Filter Feature

NO

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Özellikler

Board Guide

Contact Materials

Brass

Contact Length Post

0.138 3.50mm

Terminal

Solder

Contact Shape

Square

Iec Conformance

NO

Contact Type

Male Pin

Mil Conformance

NO

Additional Feature

POLARIZED

Shrouding

Shrouded - 4 Wall

Insulation Color

Natural

Mixed Contacts

NO

Yayın Yılı

2016

Pitch Mating

0.098 2.50mm

Insulation Height

0.247 6.28mm

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Connector Type

Header

Empty Shell

NO

Fabrika Tedarik Süresi

9 Weeks
