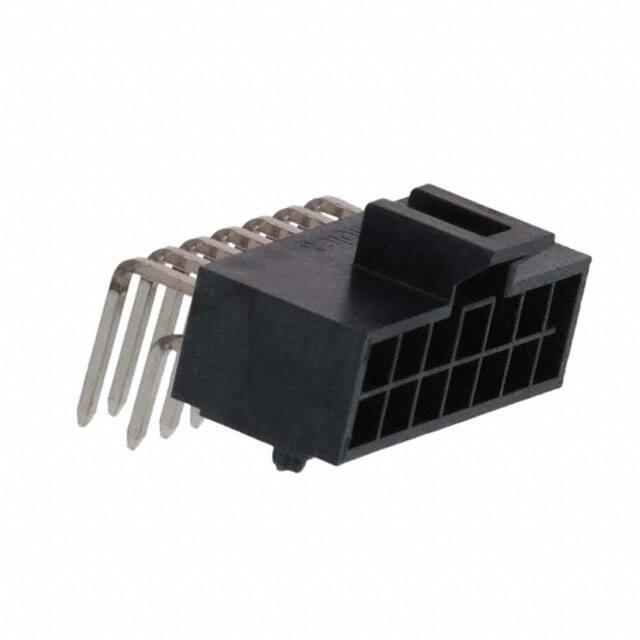

1053141314

Specifications

Sıra Sayısı

2

Pozisyon Sayısı

14

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Seri

Nano-Fit 105314

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Row Spacing Mating

0.098 (2.50mm)

Din Conformance

NO

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-40°C~105°C

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Mixed Contacts

NO

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Additional Feature

POLARIZED

Contact Type

Male Pin

Iec Conformance

NO

Contact Shape

Square

Terminal

Solder

Contact Length Post

0.138 3.50mm

Contact Materials

Brass

Özellikler

Board Guide

Ambalaj

Tray

Nem Hassasiyeti (MSL)

Not Applicable

Style

Board to Cable/Wire

Filter Feature

NO

Fastening Type

Latch Holder

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Empty Shell

NO

Connector Type

Header

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Kurşunsuz Kodu

yes

Insulation Height

0.247 6.28mm
