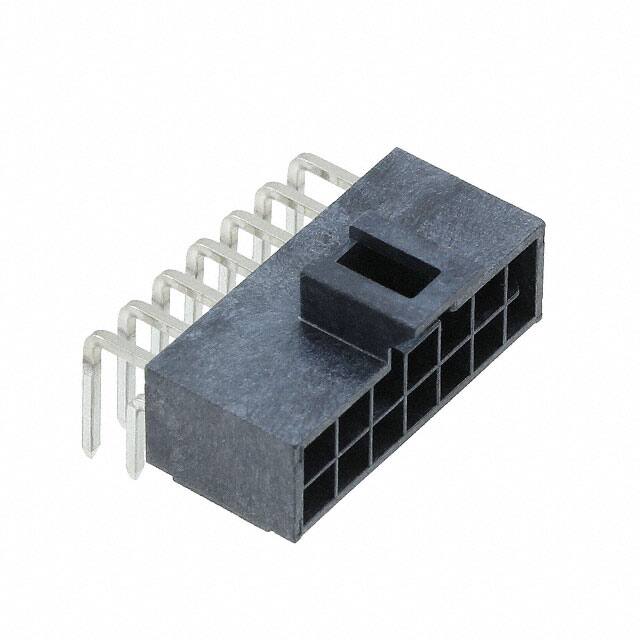

1053141214

Specifications

Din Conformance

NO

Contact Finish Thickness Mating

15.0μin 0.38μm

Çalışma Sıcaklığı

-40°C~105°C

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pozisyon Sayısı

14

Sıra Sayısı

2

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole, Right Angle

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Seri

Nano-Fit 105314

Number Of Positions Loaded

All

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Mating

Gold

Fastening Type

Latch Holder

Connector Type

Header

Empty Shell

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Contact Finish Thickness Post

59.0μin 1.50μm

Insulation Height

0.247 6.28mm

Nominal Gerilim

250V

Yayın Yılı

2016

Pitch Mating

0.098 2.50mm

Shrouding

Shrouded - 4 Wall

Mixed Contacts

NO

Insulation Color

Black

Iec Conformance

NO

Contact Shape

Square

Contact Type

Male Pin

Additional Feature

POLARIZED

Mil Conformance

NO

Contact Length Post

0.138 3.50mm

Contact Materials

Brass

Terminal

Solder

Özellikler

Board Guide

HTS Kodu

8536.69.40.30

Ambalaj

Tray
