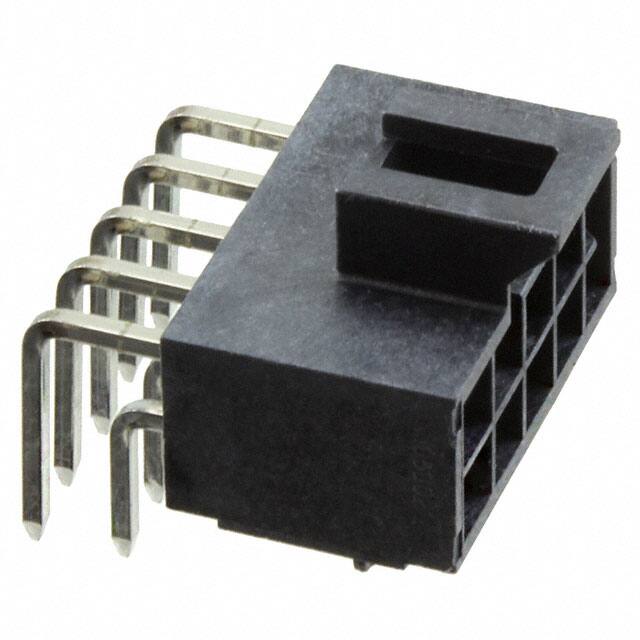

1053141110

Specifications

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Iec Conformance

NO

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Thickness Post

59.0μin 1.50μm

Fastening Type

Latch Holder

Nominal Gerilim

250V

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Mil Conformance

NO

Seri

Nano-Fit 105314

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide

Additional Feature

POLARIZED

Terminal

Solder

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass

HTS Kodu

8536.69.40.30

Empty Shell

NO

ECCN Kodu

EAR99

Mixed Contacts

NO

Contact Type

Male Pin

Pozisyon Sayısı

10

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Length Post

0.138 3.50mm

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Connector Type

Header

Contact Finish Thickness Mating

59.0μin 1.50μm

Contact Finish Mating

Tin

Fabrika Tedarik Süresi

9 Weeks

Filter Feature

NO
