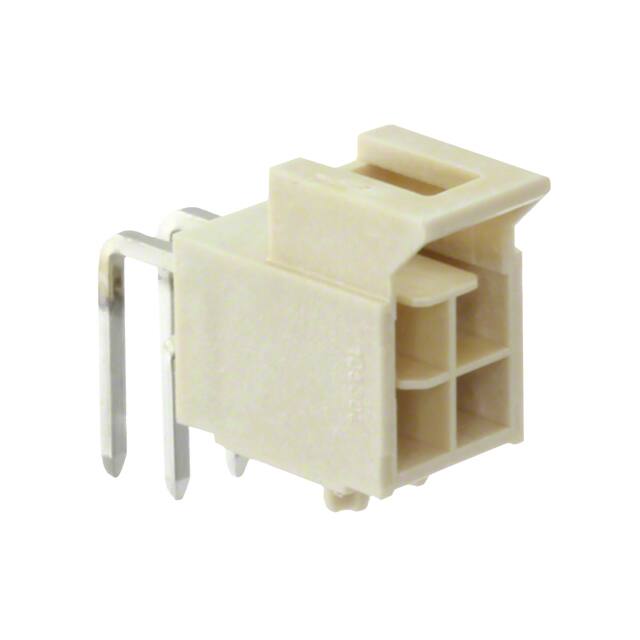

1053141104

Specifications

Contact Length Post

0.138 3.50mm

Style

Board to Cable/Wire

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Mixed Contacts

NO

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

2

Pozisyon Sayısı

4

Insulation Height

0.247 6.28mm

Fabrika Tedarik Süresi

9 Weeks

Filter Feature

NO

Yayın Yılı

2016

Contact Finish Thickness Mating

59.0μin 1.50μm

Connector Type

Header

Contact Finish Mating

Tin

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Seri

Nano-Fit 105314

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Iec Conformance

NO

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fastening Type

Latch Holder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Din Conformance

NO

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Black

Empty Shell

NO

ECCN Kodu

EAR99

Özellikler

Board Guide

Additional Feature

POLARIZED
