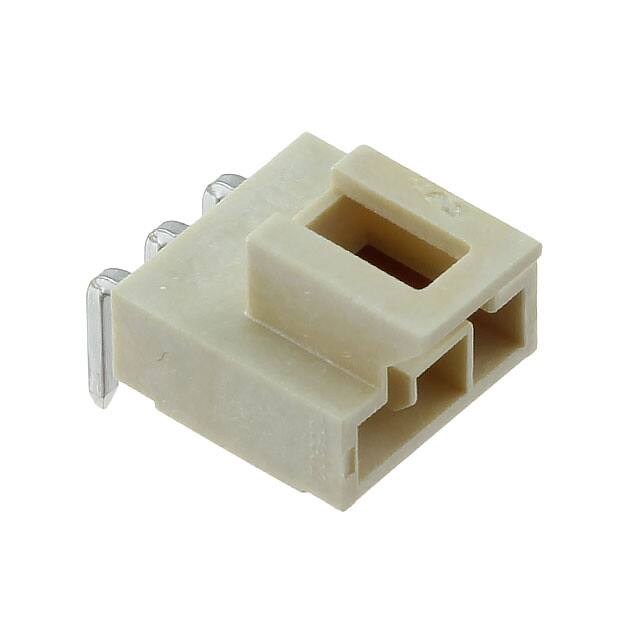

1053132303

Specifications

Özellikler

Board Guide

Additional Feature

POLARIZED

Nem Hassasiyeti (MSL)

Not Applicable

Din Conformance

NO

Terminal

Solder

Contact Materials

Brass

Insulation Color

Natural

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Empty Shell

NO

ECCN Kodu

EAR99

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Iec Conformance

NO

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fastening Type

Latch Holder

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Seri

Nano-Fit 105313

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

30.0μin 0.76μm

Connector Type

Header

Contact Finish Post

Tin

Contact Finish Mating

Gold

Insulation Height

0.149 3.78mm

Filter Feature

NO

Fabrika Tedarik Süresi

9 Weeks

Yayın Yılı

2016

JESD-609 Kodu

e3

Mixed Contacts

NO

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

3

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Ul Flammability Code

94V-0
