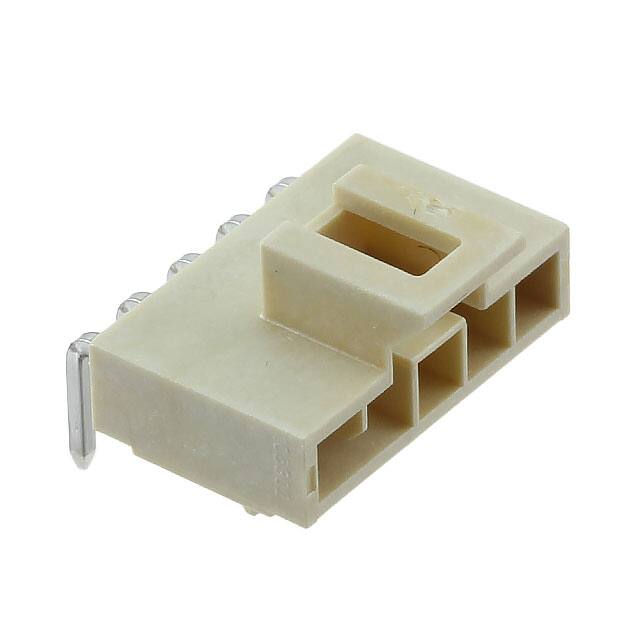

1053132205

Specifications

Contact Type

Male Pin

Pozisyon Sayısı

5

Sıra Sayısı

1

Number Of Positions Loaded

All

Mixed Contacts

NO

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Ul Flammability Code

94V-0

Connector Type

Header

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Finish Post

Tin

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Yayın Yılı

2016

Filter Feature

NO

Fabrika Tedarik Süresi

9 Weeks

Insulation Height

0.149 3.78mm

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fastening Type

Latch Holder

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Mil Conformance

NO

Seri

Nano-Fit 105313

Additional Feature

POLARIZED

Özellikler

Board Guide

Empty Shell

NO

ECCN Kodu

EAR99

Din Conformance

NO

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

Insulation Color

Natural

Montaj Tipi

Through Hole, Right Angle

Shrouding

Shrouded - 4 Wall
