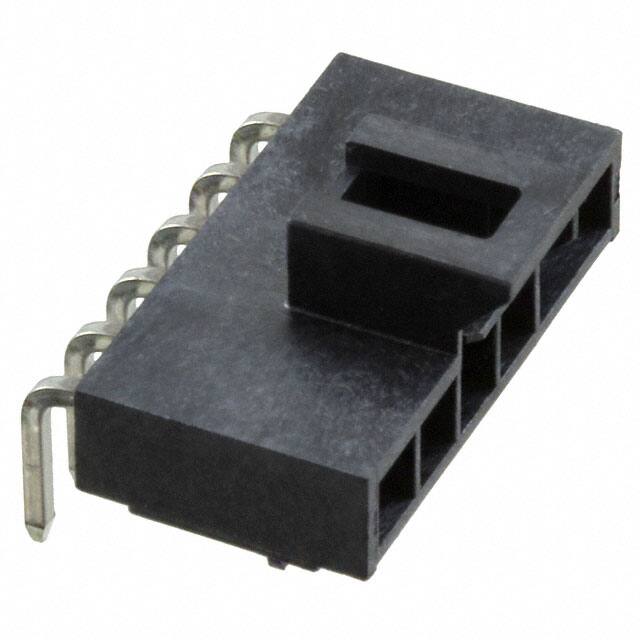

1053131306

Specifications

Özellikler

Board Guide

Additional Feature

POLARIZED

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Black

Nem Hassasiyeti (MSL)

Not Applicable

Din Conformance

NO

Terminal

Solder

Empty Shell

NO

Iec Conformance

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Fastening Type

Latch Holder

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Seri

Nano-Fit 105313

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Contact Finish Mating

Gold

Contact Finish Thickness Mating

30.0μin 0.76μm

Connector Type

Header

Insulation Height

0.149 3.78mm

Fabrika Tedarik Süresi

12 Weeks

Filter Feature

NO

Yayın Yılı

2016

JESD-609 Kodu

e3

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

6

Contact Type

Male Pin

Ul Flammability Code

94V-0

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire
