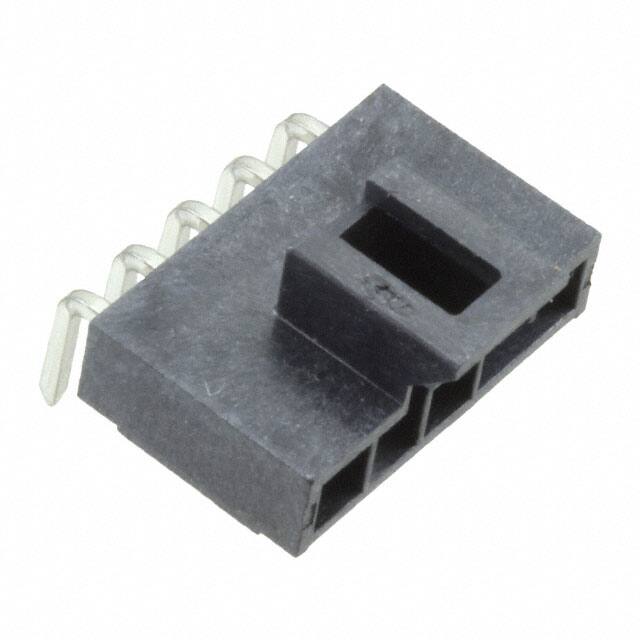

1053131305

Specifications

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Finish Thickness Mating

30.0μin 0.76μm

Connector Type

Header

Insulation Height

0.149 3.78mm

Fabrika Tedarik Süresi

9 Weeks

Filter Feature

NO

Yayın Yılı

2016

JESD-609 Kodu

e3

Mixed Contacts

NO

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

5

Contact Type

Male Pin

Ul Flammability Code

94V-0

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Özellikler

Board Guide

Additional Feature

POLARIZED

Contact Materials

Brass

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Solder

Din Conformance

NO

ECCN Kodu

EAR99

Empty Shell

NO

Iec Conformance

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Fastening Type

Latch Holder

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Seri

Nano-Fit 105313

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
