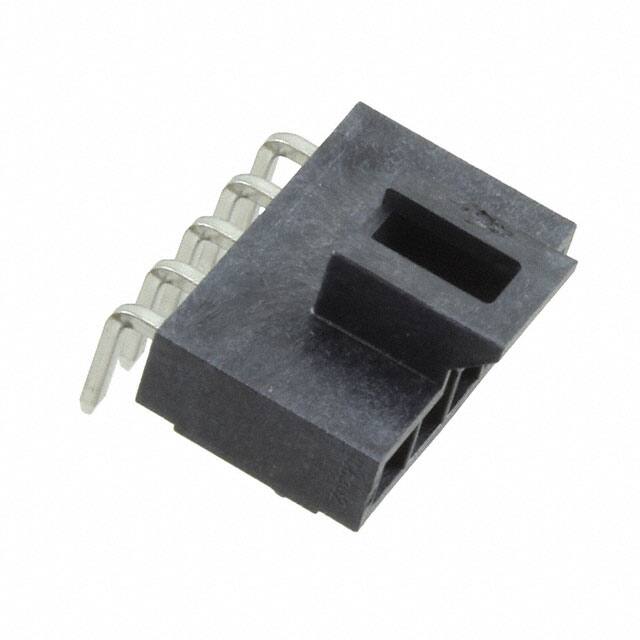

1053131205

Specifications

Iec Conformance

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Fastening Type

Latch Holder

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Mil Conformance

NO

Seri

Nano-Fit 105313

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide

Additional Feature

POLARIZED

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass

Din Conformance

NO

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

ECCN Kodu

EAR99

Empty Shell

NO

Mixed Contacts

NO

Pozisyon Sayısı

5

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Male Pin

Ul Flammability Code

94V-0

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Contact Finish Post

Tin

Contact Finish Mating

Gold

Connector Type

Header

Contact Finish Thickness Mating

15.0μin 0.38μm

Filter Feature

NO

Fabrika Tedarik Süresi

12 Weeks

Insulation Height

0.149 3.78mm
