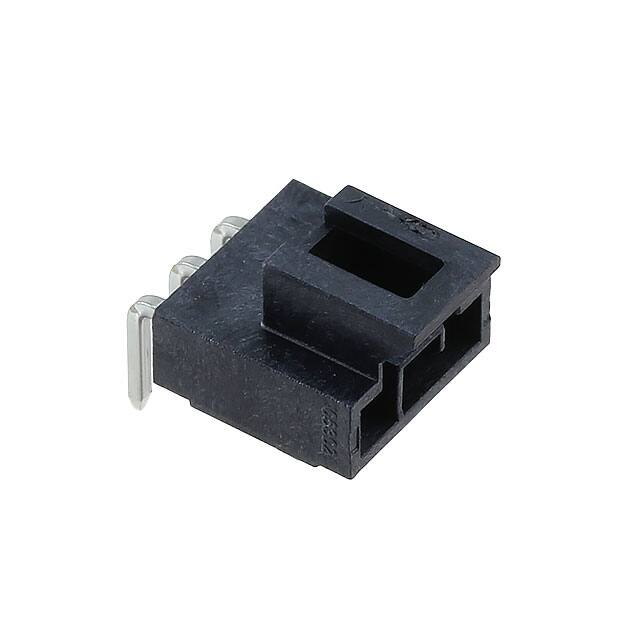

1053131103

Specifications

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Ul Flammability Code

94V-0

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

3

Contact Type

Male Pin

Mixed Contacts

NO

Yayın Yılı

2016

JESD-609 Kodu

e3

Insulation Height

0.149 3.78mm

Fabrika Tedarik Süresi

17 Weeks

Filter Feature

NO

Contact Finish Mating

Tin

Contact Finish Thickness Mating

59.0μin 1.50μm

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Seri

Nano-Fit 105313

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Fastening Type

Latch Holder

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Iec Conformance

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

ECCN Kodu

EAR99

Empty Shell

NO

Contact Materials

Brass

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Terminal

Solder

Additional Feature

POLARIZED
