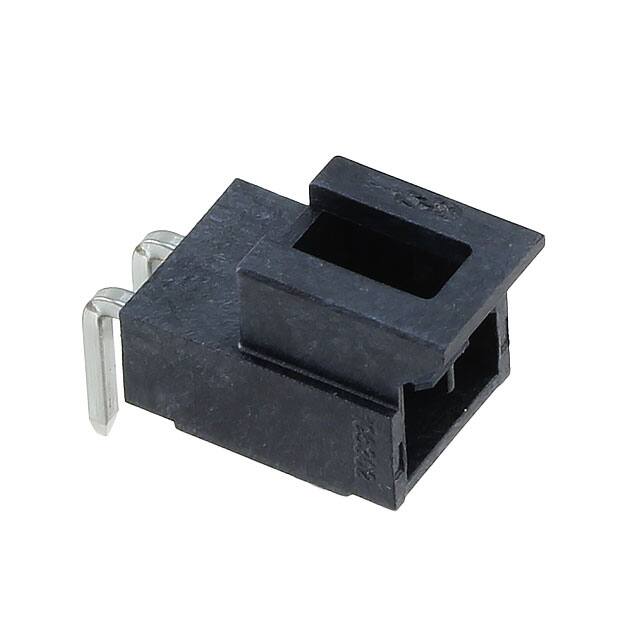

1053131102

Specifications

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

2

Yayın Yılı

2016

Insulation Height

0.149 3.78mm

Fabrika Tedarik Süresi

12 Weeks

Contact Finish Thickness Mating

59.0μin 1.50μm

Connector Type

Header

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Seri

Nano-Fit 105313

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fastening Type

Latch Holder

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Materials

Brass

HTS Kodu

8536.69.40.30

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Black

Özellikler

Board Guide
