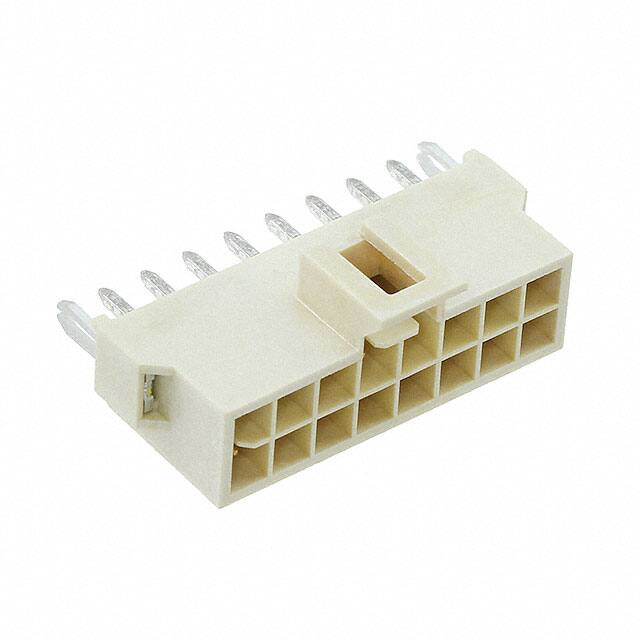

1053122316

Specifications

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Stack Height Mating

21.30mm

Contact Type

Male Pin

Pozisyon Sayısı

16

Sıra Sayısı

2

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.356 9.05mm

Yayın Yılı

2015

Connector Type

Header

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Seri

Nano-Fit 105312

REACH Uyumluluk Kodu

unknown

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Contact Finish Thickness Post

59.0μin 1.50μm

Row Spacing Mating

0.098 (2.50mm)

Fastening Type

Latch Holder

Nominal Gerilim

250V

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

Contact Materials

Brass

HTS Kodu

8536.69.40.30

ECCN Kodu

EAR99

Özellikler

Board Lock
